G-NSDMG-023
SENSOR INCLINOMETER 30DEG MODULEManufacturer: TE Connectivity Measurement Specialties
Categories: Inclinometers
Quality Control: Learn More

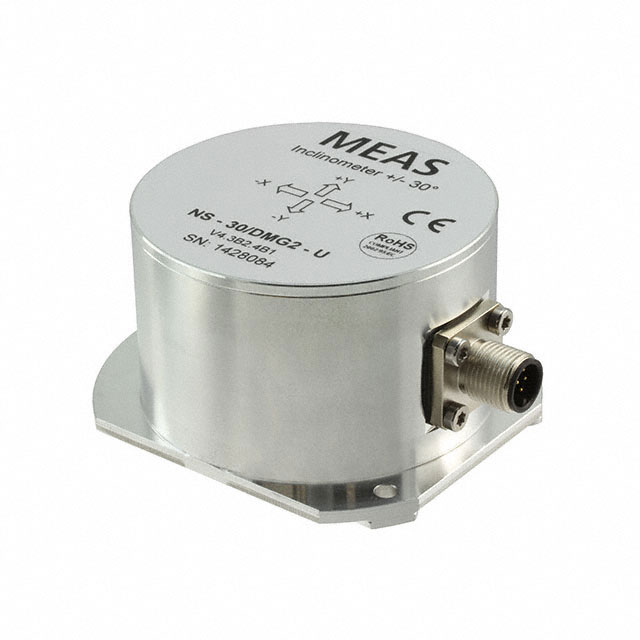

TE Connectivity Measurement Specialties' D Series G-NSDMG-023 is an inclinometer module designed for precise angular measurement. This component accurately senses tilt across the X and Y axes with a measuring range of ±30°. Featuring a serial interface, it provides voltage output suitable for a wide array of control and monitoring applications. The module operates reliably within an extended temperature range of -40°C to 85°C (TA) and is powered by a voltage rating of 10V to 30V. Its robust construction and specified performance characteristics make it a valuable selection for integration into industrial automation, robotics, and heavy equipment platforms requiring accurate inclination data. The G-NSDMG-023 is supplied in bulk packaging.
Additional Information
Series: DRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Voltage |
| Sensitivity | - |
| Interface | Serial |
| Axis | X, Y |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Bandwidth | - |
| Measuring Range | ±30° |
| Voltage Rating | 10 V ~ 30 V |
Request a Quote
