G-NSDMG-021
SENSOR INCLINOMETER 15DEG MODULEManufacturer: TE Connectivity Measurement Specialties
Categories: Inclinometers
Quality Control: Learn More

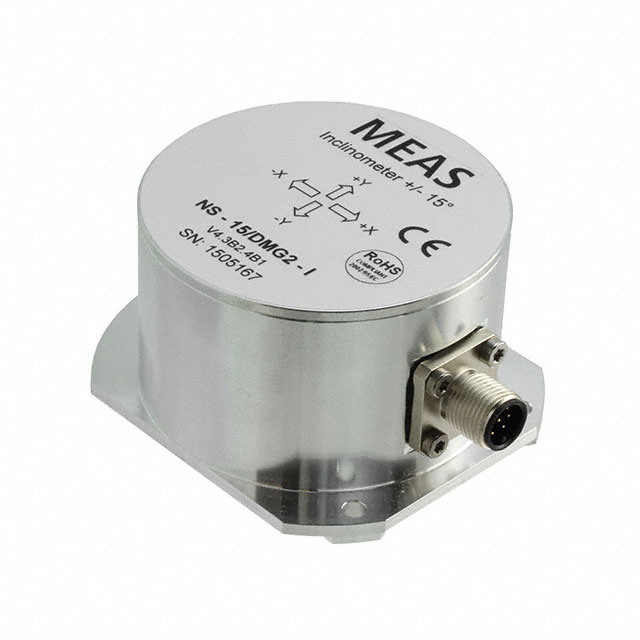

TE Connectivity Measurement Specialties, a D Series inclinometer, part number G-NSDMG-021, offers a compact module solution for precise tilt angle measurement. This electronic component provides an X and Y axis measuring range of ±15 degrees, delivering analog voltage output. Designed for reliable operation across a wide temperature range of -40°C to 85°C, it supports a voltage input of 10V to 30V. The serial interface facilitates data communication. Applications for this device are found in industrial automation, construction equipment, and robotics where accurate pitch and roll sensing is critical.
Additional Information
Series: DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Voltage |
| Sensitivity | - |
| Interface | Serial |
| Axis | X, Y |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Bandwidth | - |
| Measuring Range | ±15° |
| Voltage Rating | 10 V ~ 30 V |
