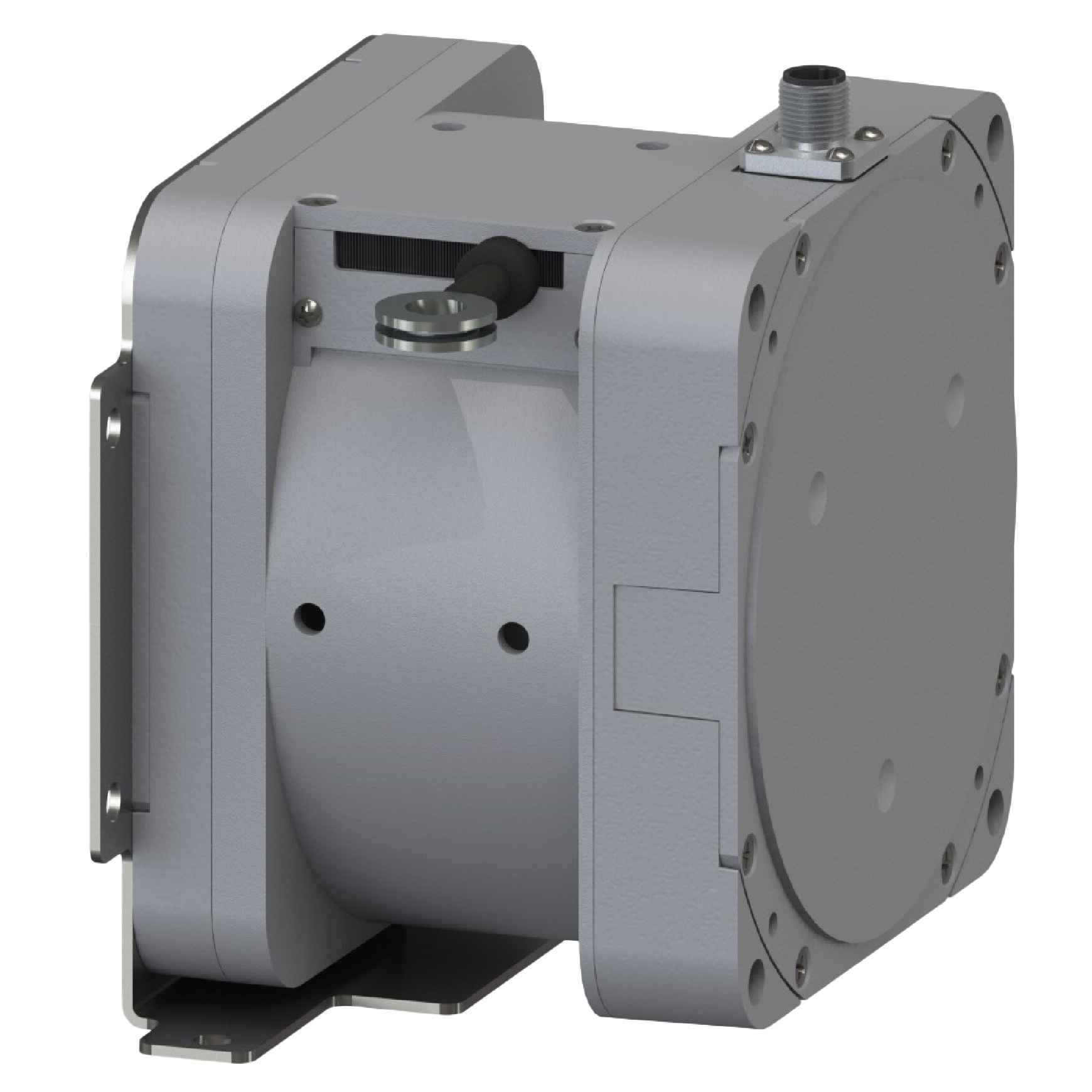

SKJ-400-4
400 IN CANJ1939 IP67 STRING POTManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
TE Connectivity Measurement Specialties SKJ series SKJ-400-4 is a resistive linear position sensor utilizing a string potentiometer actuator. This component is designed for robust operation in demanding environments, featuring an IP67 rating and a chassis mount configuration. The SKJ-400-4 offers a linear measurement range of 0 to 10160mm (0 to 400 inches) with an analog voltage output. It operates across a wide temperature range of -40°C to 85°C and is compatible with supply voltages from 10V to 36V. The termination style is a connector, and it is supplied in bulk packaging. This sensor is suitable for applications requiring precise linear position feedback in industries such as industrial automation, automotive, and heavy equipment.
Additional Information
Series: SKJRoHS Status: Vendor undefinedManufacturer Lead Time: 47 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Connector |
| Voltage - Supply | 10V ~ 36V |
| Linearity | - |
| Linear Range | 0 ~ 10160.00mm (0 ~ 400.00"") |
| Actuator Type | String Potentiometer |
| Technology | Resistive |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Programmable | - |
Request a Quote
Clients Also Buy

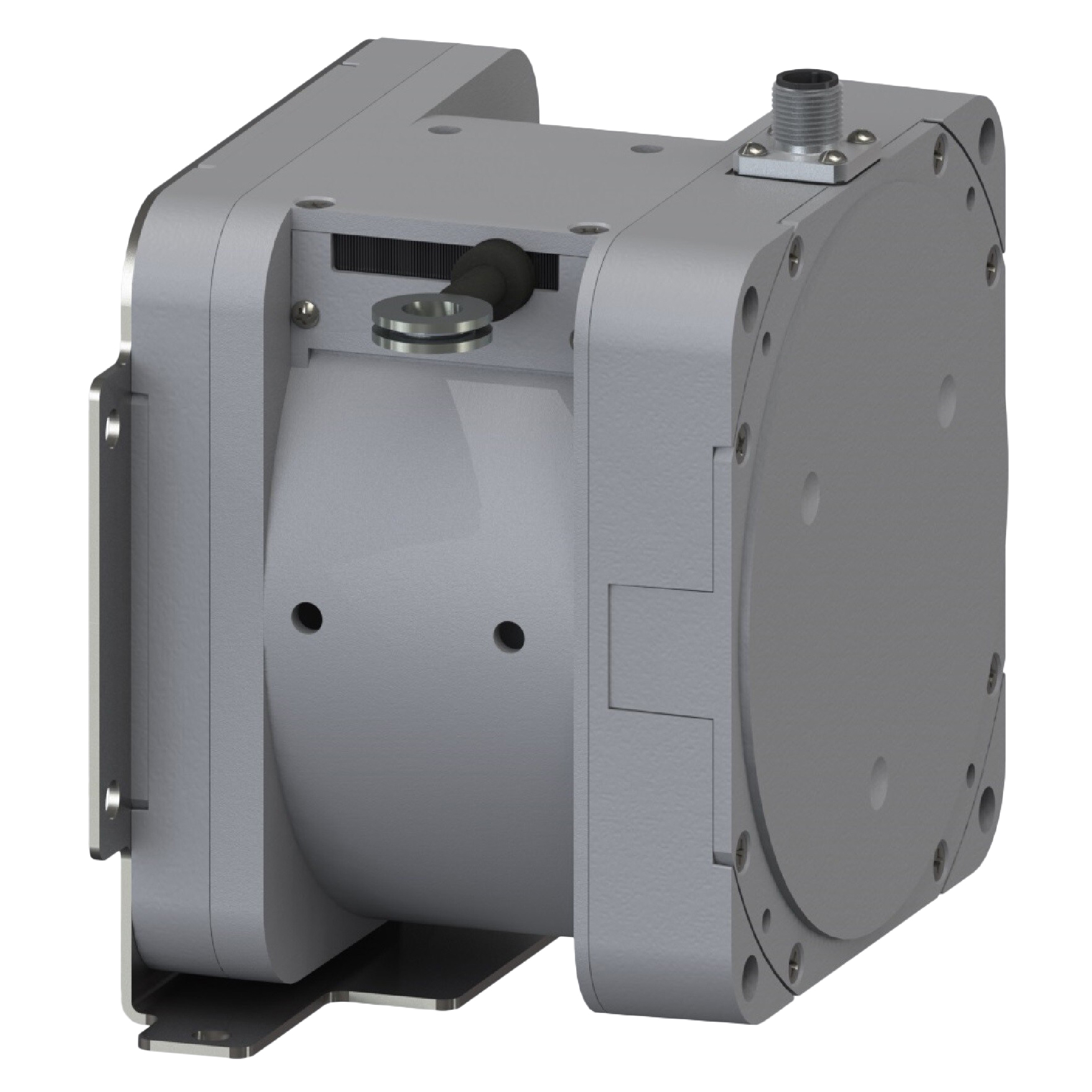

SKJ-250-4
