SKD-250-3
250 IN 0-10V / 4-20MA IP67 STRINManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

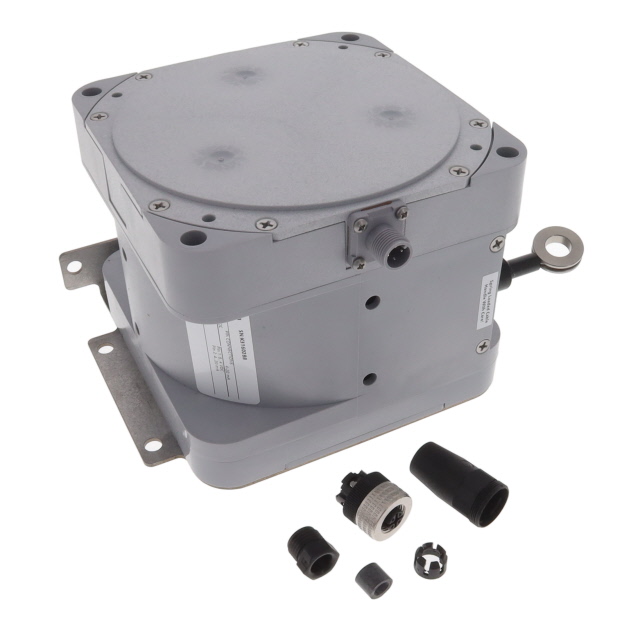

The TE Connectivity Measurement Specialties SKD-250-3 is a resistive linear position sensor from the SKD series. This string potentiometer features a substantial 6350mm (250 inch) linear range and is designed for chassis mounting. It provides analog output signals in both 0-10V and 4-20mA formats, offering flexibility for various industrial automation and measurement applications. The device operates within a temperature range of -40°C to 85°C and is rated IP67 for environmental robustness. Its resistive technology ensures reliable position feedback, making it suitable for use in industries such as manufacturing, robotics, and heavy equipment. The SKD-250-3 utilizes a connector termination style and is supplied in box packaging.
Additional Information
Series: SKDRoHS Status: Vendor undefinedManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage, 4 ~ 20mA |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Connector |
| Voltage - Supply | 8V ~ 32V, 12V ~ 40V |
| Linearity | - |
| Linear Range | 0 ~ 6350.00mm (0 ~ 250.00"") |
| Actuator Type | String Potentiometer |
| Technology | Resistive |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Programmable | - |
Request a Quote
Clients Also Buy

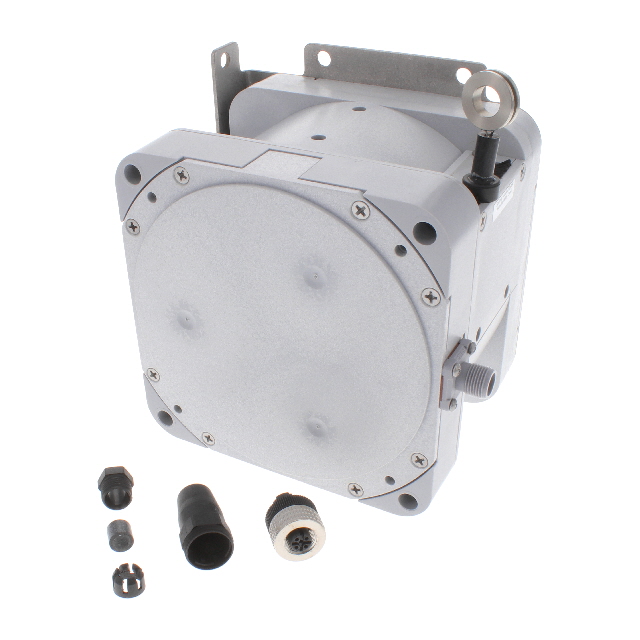

SKD-400-3
