SGD-80-3
SENSOR LINEAR 2032MM CONNECTORManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Resistive Sensor Linear Position String Potentiometer Connector
Additional Information
Series: SGDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 5 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Box with Connector |
| Mounting Type | Custom |
| Output | Analog Voltage, 4 ~ 20mA |
| Operating Temperature | -18°C ~ 70°C |
| Termination Style | Connector |
| Voltage - Supply | 8V ~ 40V |
| Linearity | - |
| Linear Range | 0 ~ 2032mm (0 ~ 80"") |
| Actuator Type | String Potentiometer |
| Technology | Resistive |
| Resistance Tolerance | ±10% |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Resistance | 10 kOhms |
| Programmable | - |
Request a Quote
Clients Also Buy

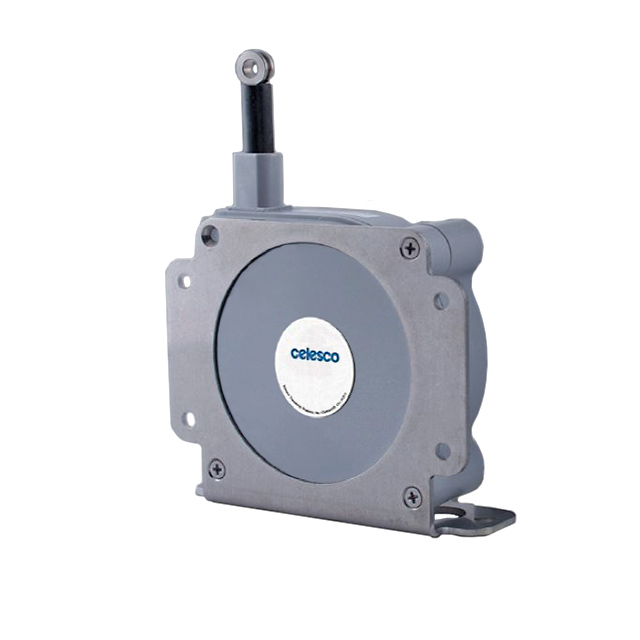

SGD-120-3
