PT9420-0075-311-1110
PT9420-0075-311-1110Manufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

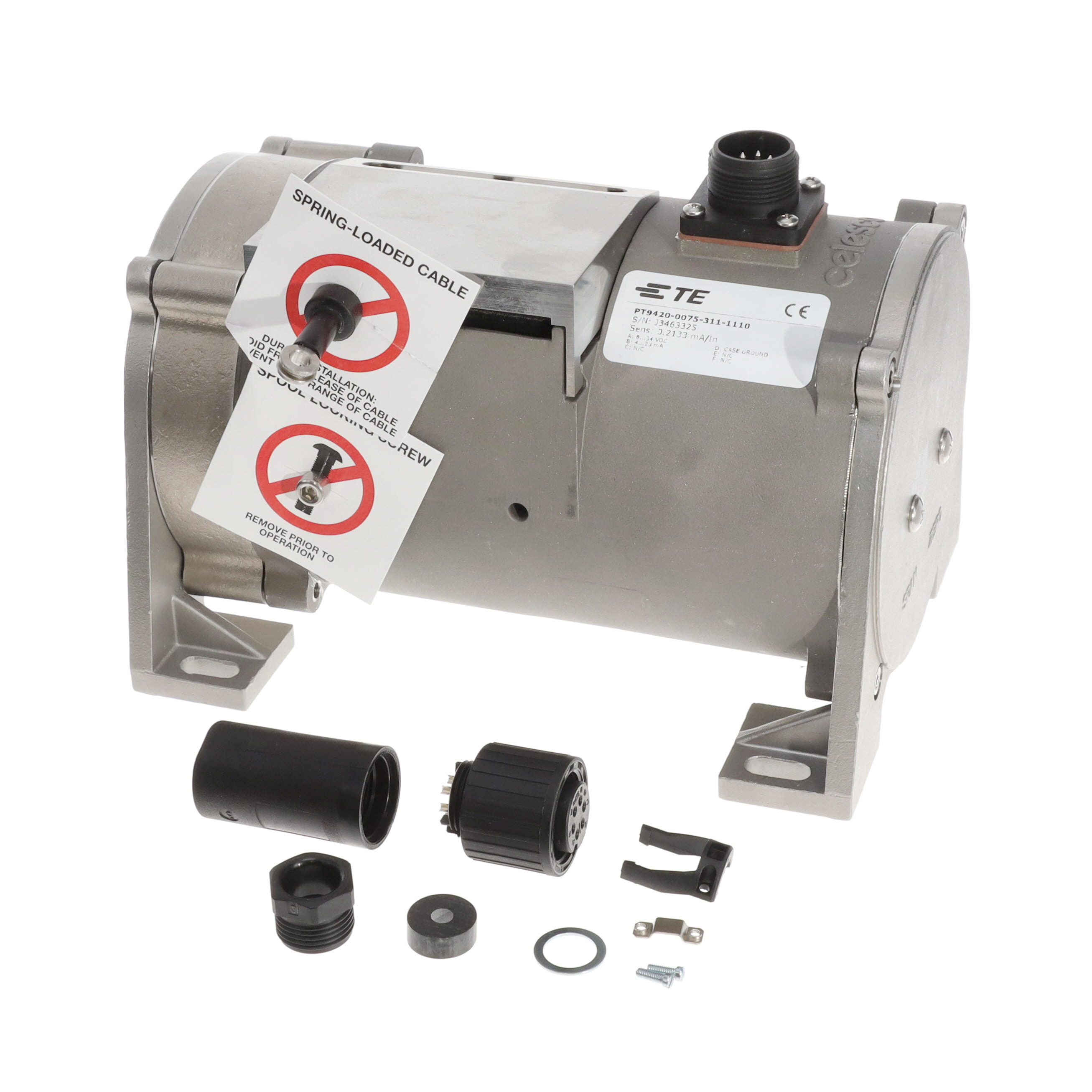

TE Connectivity Measurement Specialties PT9 Series PT9420-0075-311-1110 is a resistive linear position sensor utilizing a string potentiometer actuator. This component is engineered for precise linear displacement measurement with a specified range of 0 to 1905.00mm (75.00 inches). The sensor outputs a standard 4mA to 20mA current signal, with clockwise actuator movement resulting in an increasing output. Designed for chassis mounting, it features a connector termination style for integration into various systems. The operating temperature range is from -40°C to 90°C, and it operates with a supply voltage between 8V and 34V. This component is commonly employed in industrial automation, robotics, and material handling applications where accurate linear position feedback is critical.
Additional Information
Series: PT9RoHS Status: RoHS CompliantManufacturer Lead Time: 41 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | 4mA ~ 20mA |
| Operating Temperature | -40°C ~ 90°C |
| Termination Style | Connector |
| Voltage - Supply | 8V ~ 34V |
| Linearity | - |
| Linear Range | 0 ~ 1905.00mm (0 ~ 75.00"") |
| Actuator Type | String Potentiometer |
| Technology | Resistive |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | Clockwise Increase |
| Grade | - |
| Programmable | - |
| Qualification | - |
