G-MRCO-051

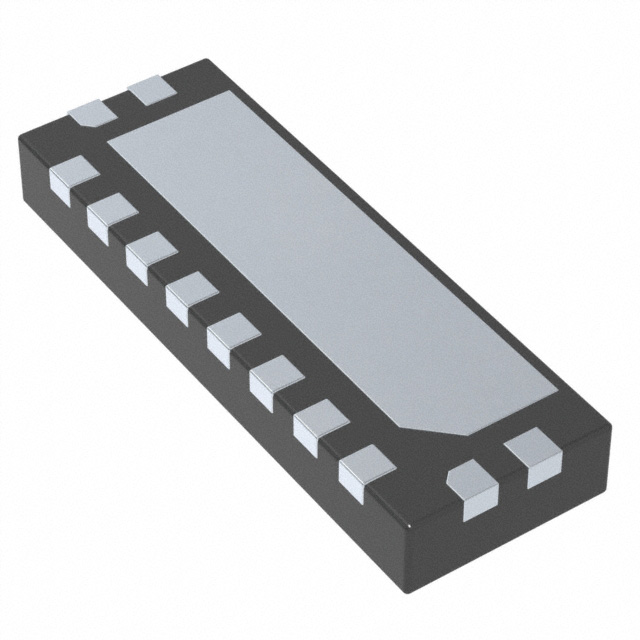

KMXP1000 MLS 1MM PITCH DFNManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
The TE Connectivity Measurement Specialties KMXP series G-MRCO-051 is a magnetoresistive sensor designed for precise linear position measurement. This component utilizes a 12-WQFN exposed pad package (12-TDLMP 6x2) with SMD (SMT) tab termination, suitable for surface mounting. It operates within a temperature range of -40°C to 150°C and requires a supply voltage of 10V. The sensor outputs analog voltage signals, specifically sine and cosine, driven by an external magnet (not included) to measure linear displacement up to 0.80mm. Its 4 kOhm resistance and 1mm pitch (DFN) make it an effective solution for applications in automotive and industrial automation where accurate linear sensing is critical. The component is supplied in Tape & Reel packaging.
Additional Information
Series: KMXPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 10V |
| Linearity | - |
| Linear Range | 0 ~ 0.80mm (0 ~ 0.03"") |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Linear Position |
| Supplier Device Package | 12-TDLMP (6x2) |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | Cosine, Sine |
| Resistance | 4 kOhms |
| Programmable | - |
