G-MRCO-037
SENSOR ANGLE SMDManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

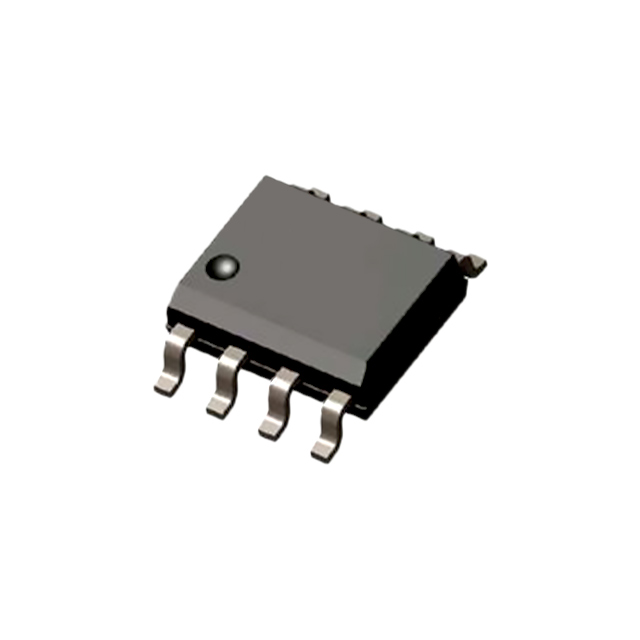

TE Connectivity Measurement Specialties G-MRCO-037 is a magnetoresistive angle sensor from the KMT series. This surface-mount component, packaged in an 8-SOIC (0.154", 3.90mm Width) with gull wing termination, is designed for precise angle measurement applications. It utilizes a Wheatstone bridge output and requires an external magnet, which is not included. The sensor operates across a temperature range of -40°C to 150°C with a supply voltage range of 0V to 8.5V and a nominal resistance of 3 kOhms. This device is commonly found in automotive, industrial automation, and robotics sectors requiring non-contact angle sensing. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: KMTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Output | Wheatstone Bridge |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 0V ~ 8.5V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | 8-SO |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Resistance | 3 kOhms |
| Programmable | - |
