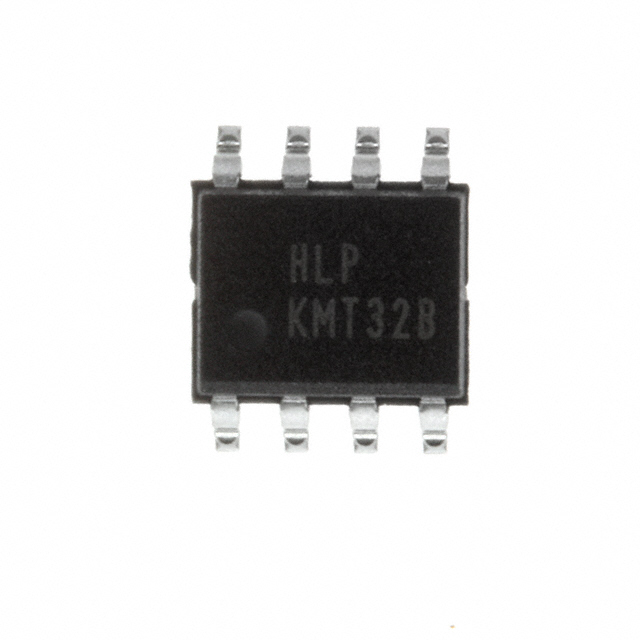

G-MRCO-015
SENSOR ANGULAR 180 DEGREES 8SOManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
TE Connectivity Measurement Specialties G-MRCO-015 is a magnetoresistive sensor designed for angle measurement applications. This component utilizes an external magnet, sold separately, to determine angular position over a 0° to 180° range. Featuring a Wheatstone bridge output, it offers a linearity of ±0.2% and a resistance of 3.6 kOhms. The sensor is packaged in an 8-SOIC (0.154", 3.90mm Width) surface-mount package with SMD tabs for termination. Operating across a wide temperature range of -40°C to 150°C and requiring a 5V supply, the G-MRCO-015 is suitable for industrial automation and automotive systems where precise angular feedback is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Output | Wheatstone Bridge |
| Operating Temperature | -40°C ~ 150°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 5V |
| Linearity | ±0.2% |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | 8-SO |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Output Signal | - |
| Resistance | 3.6 kOhms |
| Programmable | - |
