6915-1002-030
SENSOR ROTARY 340DEG WIRE LEADSManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
TE Connectivity Measurement Specialties 6915 series rotary sensor, part number 6915-1002-030, offers a resistive output for precise rotary position measurement. This exposed element sensor provides a 340° electrical and mechanical rotation range with a continuous output signal that increases clockwise. Featuring a 5 kOhm resistance with a ±10% tolerance and ±0.5% linearity, it operates across a wide temperature range of -65°C to 125°C. The custom mounting type and wire lead termination facilitate integration into various systems. This component is suitable for applications in industrial automation, aerospace, and automotive sectors requiring accurate angular feedback.
Additional Information
Series: 6915RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Ring, Wire Leads |
| Mounting Type | Custom |
| Output | Resistive |
| Operating Temperature | -65°C ~ 125°C |
| Termination Style | Wire Leads |
| Voltage - Supply | - |
| Linearity | ±0.5% |
| Linear Range | - |
| Actuator Type | Exposed Element - Rotary |
| Technology | Resistive |
| Resistance Tolerance | ±10% |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
| Output Signal | Clockwise Increase |
| Resistance | 5 kOhms |
| Programmable | - |
Request a Quote
Clients Also Buy

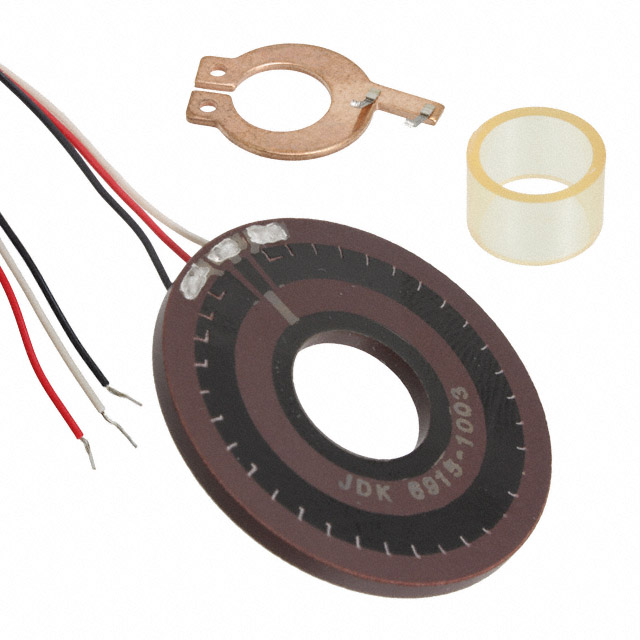

6915-1003-030
