6909-1002-030
SENSOR ROTARY 340DEG WIRE LEADSManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

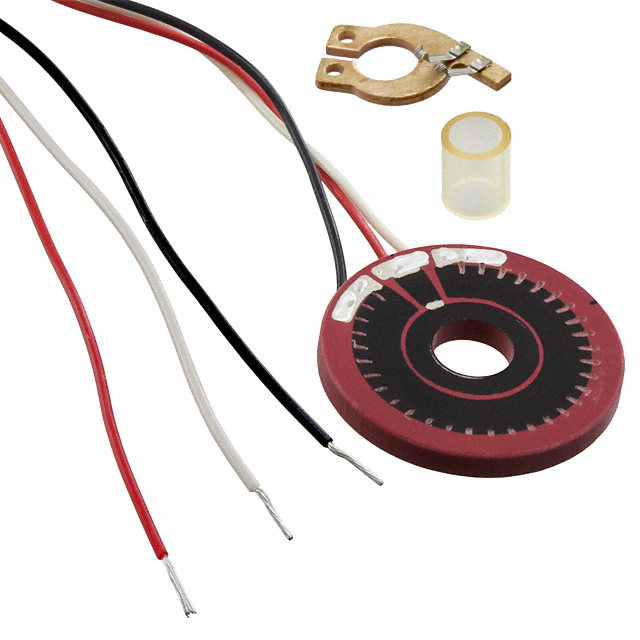

TE Connectivity Measurement Specialties 6909 Series rotary position sensor, part number 6909-1002-030. This resistive sensor features an exposed element design for precise rotary position measurement. It offers a 340-degree electrical and mechanical rotation range with continuous output. The sensor provides a resistive output signal with clockwise increase and a nominal resistance of 5 kOhms with a ±10% tolerance. Linearity is rated at ±0.5%. Operating temperature range is -65°C to 125°C. Termination is via wire leads. This component is commonly utilized in industrial automation, automotive systems, and defense applications requiring accurate angular feedback. The device is supplied in a bag.
Additional Information
Series: 6909RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Ring, Wire Leads |
| Mounting Type | Custom |
| Output | Resistive |
| Operating Temperature | -65°C ~ 125°C |
| Termination Style | Wire Leads |
| Voltage - Supply | - |
| Linearity | ±0.5% |
| Linear Range | - |
| Actuator Type | Exposed Element - Rotary |
| Technology | Resistive |
| Resistance Tolerance | ±10% |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
| Output Signal | Clockwise Increase |
| Resistance | 5 kOhms |
| Programmable | - |
