6015-1002-030

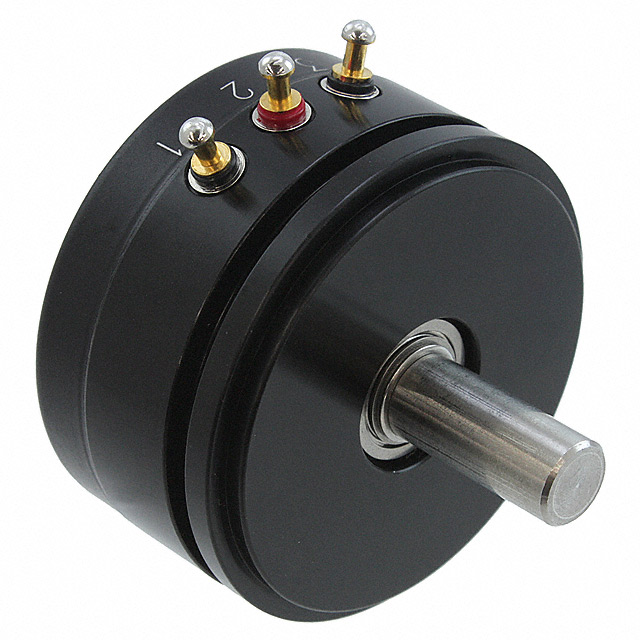

SENSOR ROTARY 340DEG SLDR TURRETManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Resistive Sensor Rotary Position Round Shaft Solder Turret
Additional Information
Series: 6015RoHS Status: Vendor undefinedManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Module |
| Mounting Type | Custom |
| Output | Resistive |
| Operating Temperature | -65°C ~ 125°C |
| Termination Style | Solder Turret |
| Voltage - Supply | - |
| Linearity | ±0.5% |
| Linear Range | - |
| Actuator Type | Round Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±10% |
| For Measuring | Rotary Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 340°, Continuous |
| Output Signal | Clockwise Increase |
| Resistance | 5 kOhms |
| Programmable | - |
