5903-0510-030
SENSOR LINEAR 25.4MM WIRE LEADSManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
TE Connectivity Measurement Specialties 5903 series resistive linear position sensor, part number 5903-0510-030. This sensor features a round shaft actuator with wire lead termination, designed for precise linear position measurement up to 25.40mm. It offers a linearity of ±1% and a nominal resistance of 5 kOhms with a ±10% tolerance. Operating across an extended temperature range from -65°C to 125°C, this component is suitable for applications in industrial automation, aerospace, and automotive systems requiring reliable displacement feedback. The module package with wire leads and threaded mounting ensures robust integration into custom electromechanical assemblies.
Additional Information
Series: 5903RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDownload Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Module, Wire Leads, Threaded |
| Mounting Type | Custom |
| Output | Resistive |
| Operating Temperature | -65°C ~ 125°C |
| Termination Style | Wire Leads |
| Voltage - Supply | - |
| Linearity | ±1% |
| Linear Range | 0 ~ 25.40mm (0 ~ 1.00"") |
| Actuator Type | Round Shaft |
| Technology | Resistive |
| Resistance Tolerance | ±10% |
| For Measuring | Linear Position |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | - |
| Output Signal | - |
| Resistance | 5 kOhms |
| Programmable | - |
Request a Quote
Clients Also Buy

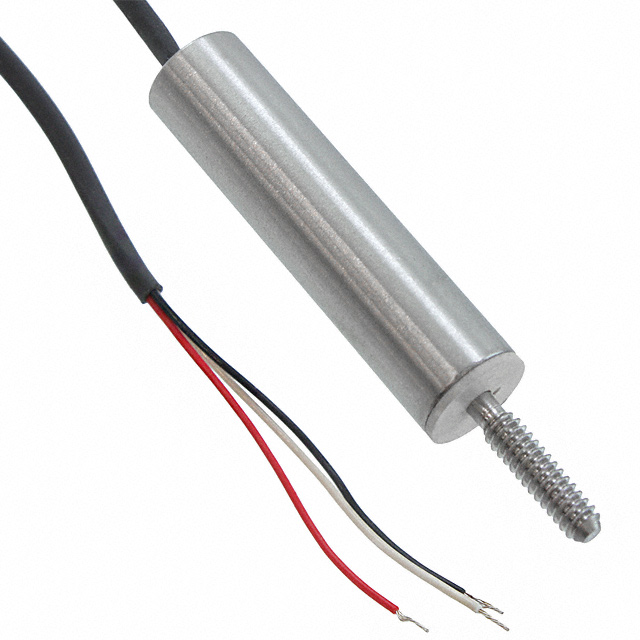

5903-0505-030
SENSOR LINEAR 12.7MM WIRE LEADS
5903-1005-030
SENSOR LINEAR 12.7MM WIRE LEADS

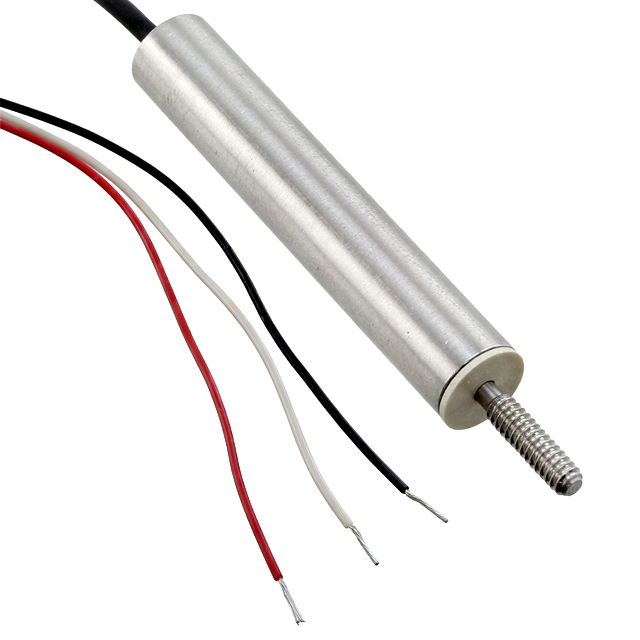

5903-1010-030
