02160023-000
SENSOR ANGLE 39.98DEG CBL W/CONNManufacturer: TE Connectivity Measurement Specialties
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

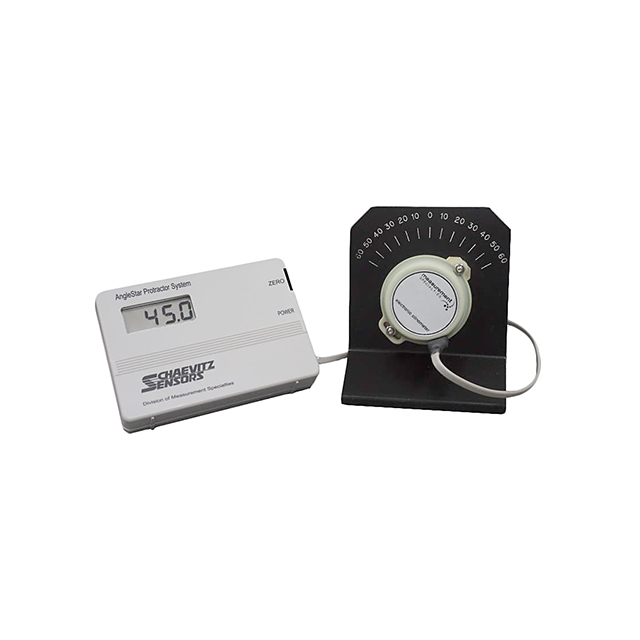

TE Connectivity Measurement Specialties AngleStar® 02160023-000 features a robust digital readout for precise angle measurement. This sensor is engineered for an electrical and mechanical rotation range of 39.98°, with a linearity of ±1%. Designed for chassis mounting, it operates within a temperature range of -18°C to 55°C and requires a supply voltage of 9V to 15V. The component is terminated with a cable and connector for straightforward integration. This angle measurement sensor finds application in industries requiring accurate positional feedback.
Additional Information
Series: AngleStar®RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Output | Digital Readout |
| Operating Temperature | -18°C ~ 55°C |
| Termination Style | Cable with Connector |
| Voltage - Supply | 9V ~ 15V |
| Linearity | ±1% |
| Linear Range | - |
| Actuator Type | - |
| Technology | - |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 39.98° (±19.99°) |
| Output Signal | - |
| Programmable | - |
