G-TPMO-022
SENSOR DIGITAL 0C-85CManufacturer: TE Connectivity Measurement Specialties
Categories: Analog and Digital Output
Quality Control: Learn More

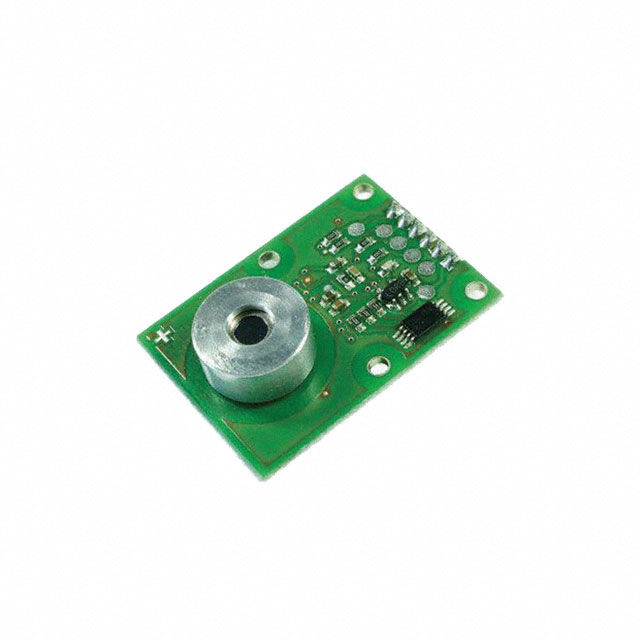

TE Connectivity Measurement Specialties G-TPMO-022 is a digital temperature sensor module designed for applications requiring precise temperature monitoring. This component features both local and remote sensing capabilities, with the local sensing range spanning 0°C to 85°C, and remote (IR) sensing up to 300°C. The G-TPMO-022 communicates via an SPI interface, offering efficient data transfer. It operates within a supply voltage range of 2.6V to 3.6V and has an operating temperature range of 0°C to 85°C. Accuracy specifications are ±2°C at the highest precision and ±4°C at the lowest, tested under conditions of 15°C to 35°C. The module utilizes a through-hole mounting type and is supplied in a module package. This sensor is suitable for use in industrial automation, automotive systems, and medical equipment.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Package / Case | Module |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply | 2.6V ~ 3.6V |
| Sensor Type | Digital, Local/Remote |
| Resolution | - |
| Supplier Device Package | - |
| Test Condition | 15°C ~ 35°C |
| Accuracy - Highest (Lowest) | ±2°C (±4°C) |
| Sensing Temperature - Local | 0°C ~ 85°C |
| Sensing Temperature - Remote | 0°C ~ 300°C (IR) |
