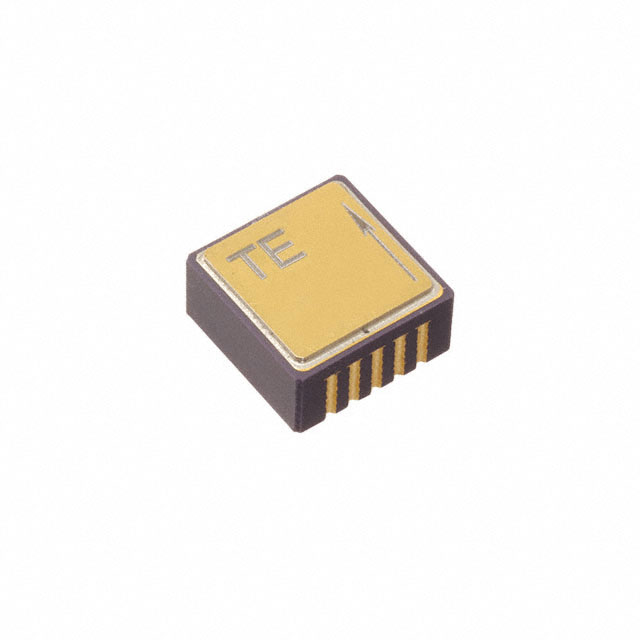

820M1-0025
ACCELEROMETERManufacturer: TE Connectivity Measurement Specialties
Categories: Accelerometers
Quality Control: Learn More
The TE Connectivity Measurement Specialties 820M1 Series accelerometer, part number 820M1-0025, is a high-performance X-axis sensor designed for demanding applications. Featuring an acceleration range of ±25g and a wide bandwidth of 10kHz, this component delivers precise measurements suitable for advanced industrial control, aerospace systems, and automotive safety applications. The analog voltage output provides a sensitivity of 50mV/g, facilitating straightforward integration with signal conditioning circuitry. Supplied in a 10-LCC (8.89x8.89) surface-mount package, the 820M1-0025 operates across a temperature range of -40°C to 125°C and supports supply voltages from 3V to 5.5V. This device is provided on tape and reel for automated assembly processes.
Additional Information
Series: 820M1RoHS Status: Vendor undefinedManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-LCC |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±25g |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Bandwidth | 10kHz |
| Supplier Device Package | 10-LCC (8.89x8.89) |
| Sensitivity (LSB/g) | - |
| Sensitivity (mV/g) | 50 |
