20008458-00

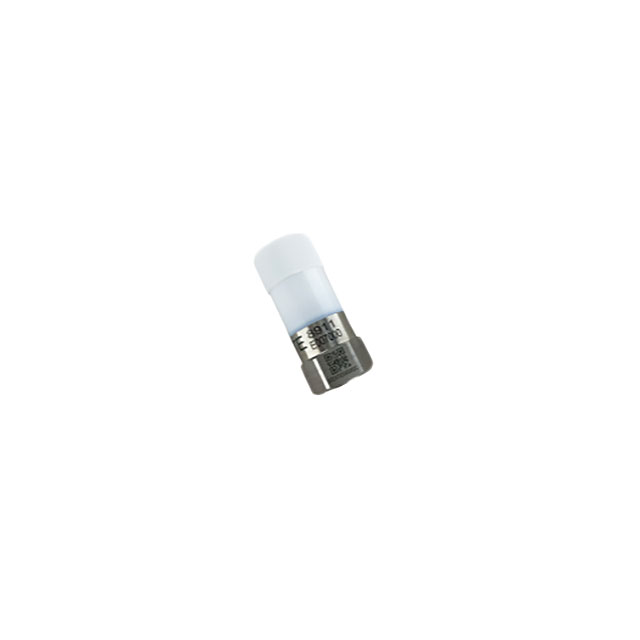

8911-E WIRELESS ACCELEROMETERManufacturer: TE Connectivity Measurement Specialties
Categories: Accelerometers
Quality Control: Learn More
TE Connectivity Measurement Specialties X-Axis Accelerometer, part number 20008458-00, offers a ±50g acceleration range with a bandwidth from 1Hz to 10kHz. This module-packaged component features an integrated temperature sensor and operates from a 3.5V supply. Designed for chassis mounting, it delivers 100 mV/g sensitivity. The operating temperature range is -20°C to 60°C. This component is suitable for applications in industrial automation and condition monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | - |
| Mounting Type | Chassis Mount |
| Type | Analog |
| Axis | X |
| Acceleration Range | ±50g |
| Operating Temperature | -20°C ~ 60°C |
| Voltage - Supply | 3.5V |
| Bandwidth | 1Hz ~ 10kHz |
| Supplier Device Package | Module |
| Sensitivity (LSB/g) | - |
| Sensitivity (mV/g) | 100 |
