1005685-1
ACCELEROMETER 250G ANALOGManufacturer: TE Connectivity Measurement Specialties
Categories: Accelerometers
Quality Control: Learn More
TE Connectivity Measurement Specialties, a leading innovator in sensor technology, presents the 1005685-1, an analog accelerometer designed for precise motion detection. This X, Y, and Z axis accelerometer offers a wide acceleration range of ±250g, coupled with a broad bandwidth from 0.5Hz to 4kHz, ensuring capture of dynamic motion events. Featuring an analog voltage output with a sensitivity of 1.8mV/g, this component provides a clear and usable signal for data acquisition systems. The module is surface mountable and operates across a temperature range of -40°C to 85°C, making it suitable for demanding environments. With a versatile supply voltage range of 3V to 40V, the 1005685-1 is an ideal choice for applications in automotive, industrial automation, and aerospace where robust and accurate acceleration measurement is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: -Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | - |
| Package / Case | Module |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Type | Analog |
| Axis | X, Y, Z |
| Acceleration Range | ±250g |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 40V |
| Bandwidth | 0.5Hz ~ 4kHz |
| Supplier Device Package | - |
| Sensitivity (LSB/g) | - |
| Sensitivity (mV/g) | 1.8 |
Request a Quote
Clients Also Buy
1210F-020-237
ACCEL 1210F

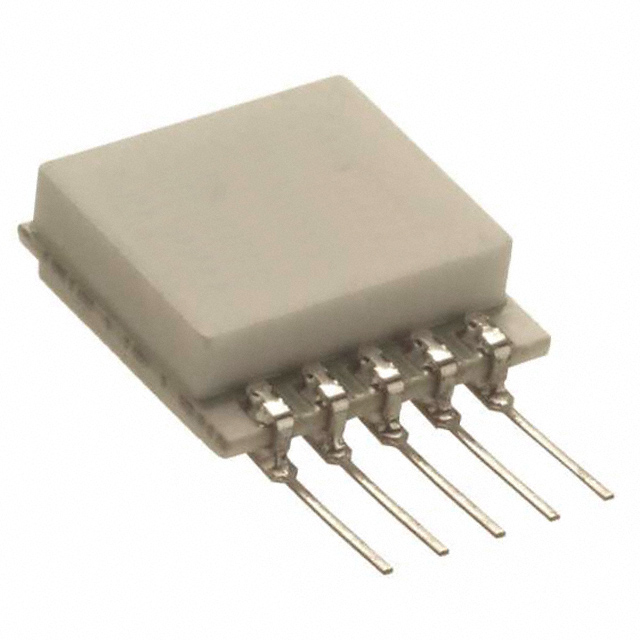

3052-002-P
