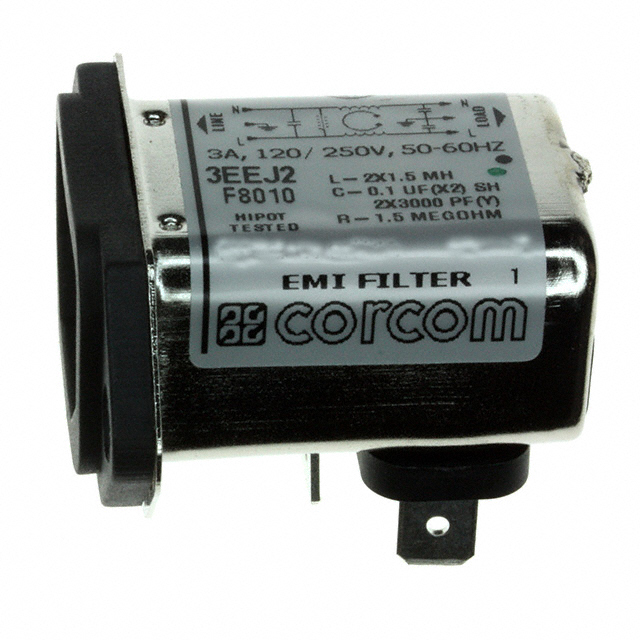

3EEJ2
PWR ENT RCPT IEC320-C14 PANEL QCManufacturer: TE Connectivity Corcom Filters
Categories: Power Entry Modules (PEM)
Quality Control: Learn More
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange, Right Angle
Additional Information
Series: EEJ, CorcomRoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Connector Type | Receptacle, Male Blades |
| Mounting Type | Panel Mount, Flange, Right Angle |
| Number of Positions | 3 |
| Termination | Quick Connect - 0.250"" (6.3mm) |
| Approval Agency | CSA, UL, VDE |
| Ingress Protection | - |
| Panel Thickness | - |
| Panel Cutout Dimensions | Rectangular - 36.83mm x 26.75mm |
| Connector Style | IEC 320-C14 |
| Material Flammability Rating | - |
| Accomodates a Fuse | No |
| Switch Features | - |
| Fuse Holder, Drawer | - |
| Current Rating - Appliance Inlet | 3A |
| Voltage Rating - Appliance Inlet | 120/250VAC |
| Current Rating - Filter | 3A |
| Current Rating - Circuit Breaker | - |
