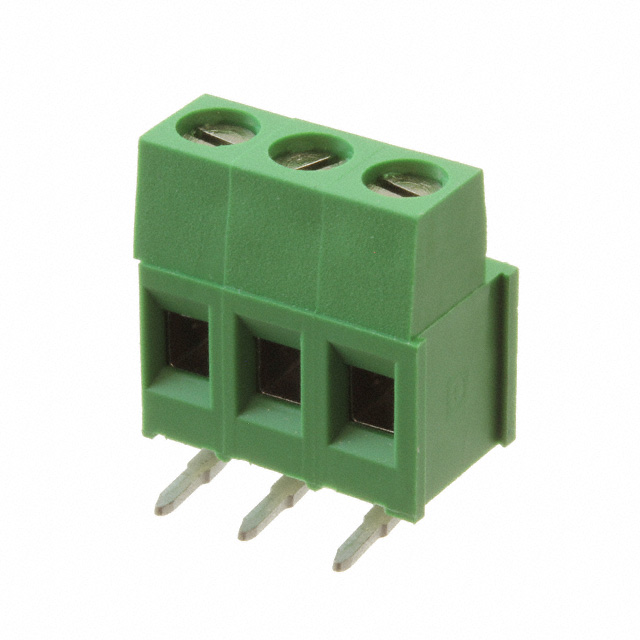

284410-3
TERM BLK 3POS BOTTOM ENT 5MM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Wire to Board
Quality Control: Learn More
TE Connectivity AMP Connectors Buchanan series terminal block, part number 284410-3. This 3-position, single-level block features a 5.00mm (0.197") pitch and bottom entry mating orientation for vertical board mounting. Designed for through-hole PCB applications, it supports wire gauges from 12 to 30 AWG with screw-type rising cage clamp wire termination. Rated for 17.5A and 300V, this green terminal block is suitable for applications in industrial automation, control systems, and power distribution. Its interlocking feature enhances mechanical stability. Supplied in bulk packaging.
Additional Information
Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 12-30 AWG |
| Pitch | 0.197"" (5.00mm) |
| Mating Orientation | Vertical with Board, Bottom Entry |
| Positions Per Level | 3 |
| Wire Termination | Screw - Rising Cage Clamp |
| Current | 17.5 A |
| Number of Levels | 1 |
| Voltage | 300 V |
