284410-2
TERM BLK 2POS BOTTOM ENT 5MM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Wire to Board
Quality Control: Learn More

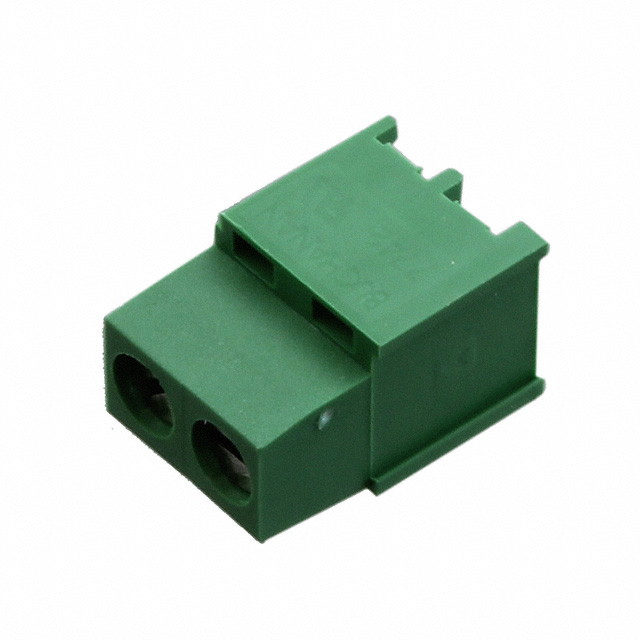

TE Connectivity AMP Connectors Buchanan series terminal block, part number 284410-2, offers a robust 2-position wire-to-board solution with a 5.00mm pitch. This vertical, bottom-entry terminal block features a through-hole mounting type, suitable for PCB integration. It supports a current rating of 17.5A and a voltage rating of 300V, accommodating wire gauges from 12 to 30 AWG via screw-based rising cage clamp termination. The design includes side-to-side interlocking for enhanced mechanical stability. Applications for this component are found in industrial automation, power supplies, and consumer electronics. Packaged in bulk, this green terminal block exemplifies reliable connectivity for demanding environments.
Additional Information
Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 12-30 AWG |
| Pitch | 0.197"" (5.00mm) |
| Mating Orientation | Vertical with Board, Bottom Entry |
| Positions Per Level | 2 |
| Wire Termination | Screw - Rising Cage Clamp |
| Current | 17.5 A |
| Number of Levels | 1 |
| Voltage | 300 V |
