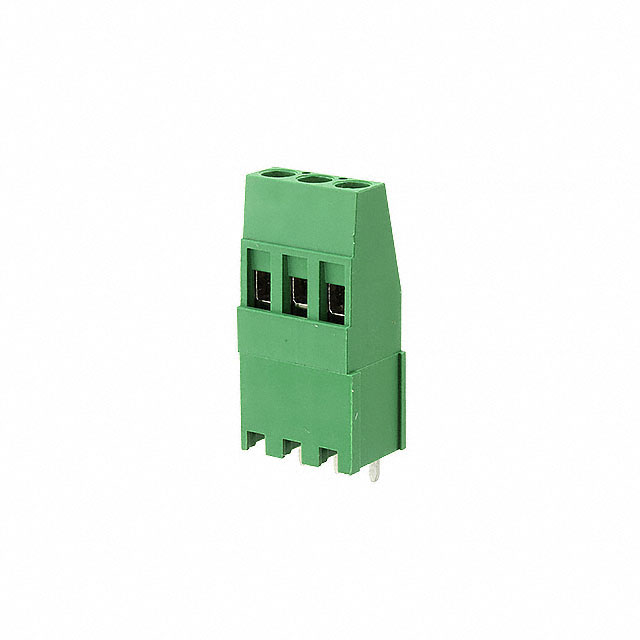

282921-3
TERM BLK 3P SIDE ENT 5.08MM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Wire to Board
Quality Control: Learn More
TE Connectivity AMP Connectors Buchanan Series 282921-3 is a 3-position, through-hole mounted terminal block designed for wire-to-board applications. Featuring a 0.200" (5.08mm) pitch and horizontal mounting orientation with board, this component offers a robust solution for signal and power distribution. It supports wire gauges from 12 to 30 AWG with a rising cage clamp screw termination for secure connections. The terminal block is rated for 300V and 24A, with a single level and side and rear interlocking features for enhanced assembly. Its green color and bulk packaging are noted. This component is commonly utilized in industrial automation and control systems.
Additional Information
Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Interlocking (Rear, Side), Mid Wire Entry Level |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 12-30 AWG |
| Pitch | 0.200"" (5.08mm) |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 3 |
| Wire Termination | Screw - Rising Cage Clamp |
| Current | 24 A |
| Number of Levels | 1 |
| Voltage | 300 V |
