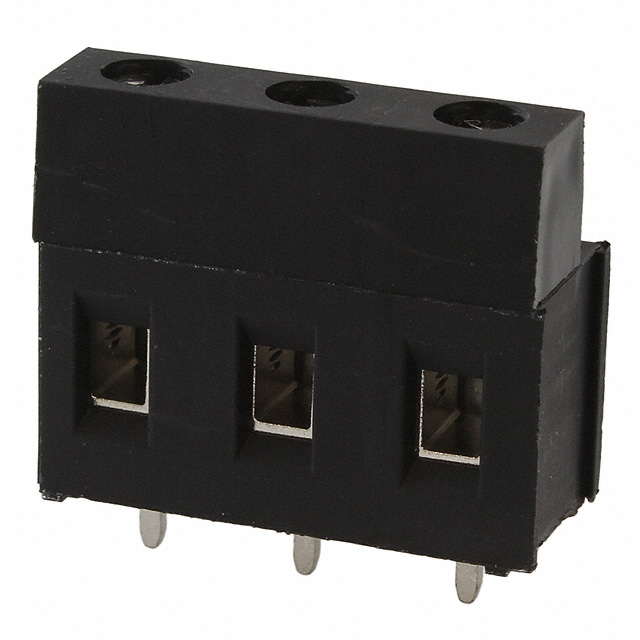

1546062-3
TERM BLK 3POS SIDE ENT 7.5MM PCBManufacturer: TE Connectivity AMP Connectors
Categories: Wire to Board
Quality Control: Learn More
TE Connectivity AMP Connectors Buchanan series terminal block, part number 1546062-3, offers a 3-position, single-level design for efficient wire-to-board connections. This horizontal terminal block features a 7.50mm pitch with side entry and a 300V voltage rating, supporting currents up to 24A. Wire termination is secured via screw-rising cage clamp, accommodating wire gauges from 12 to 30 AWG. Its through-hole mounting type and interlocking feature ensure robust PCB integration. This component is widely utilized in industrial automation, power supplies, and telecommunications infrastructure.
Additional Information
Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Interlocking (Side) |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Through Hole |
| Wire Gauge | 12-30 AWG |
| Pitch | 0.295"" (7.50mm) |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 3 |
| Wire Termination | Screw - Rising Cage Clamp |
| Current | 24 A |
| Number of Levels | 1 |
| Voltage | 300 V |
