790368-1
CONN WIRE PIN TERM 8AWG TERMINYLManufacturer: TE Connectivity AMP Connectors
Categories: Wire Pin Connectors
Quality Control: Learn More
TE Connectivity AMP Connectors Terminyl series wire pin terminal connector, part number 790368-1. This non-insulated crimp terminal is designed for 8 AWG (8.00mm²) wire. It features a circular pin diameter of 0.102" (2.60mm) and a total length of 1.445" (36.70mm), with the pin portion measuring 0.709" (18.01mm). The insulation diameter accommodates up to 0.260" (6.60mm). This component is utilized in industrial automation, power distribution, and general electronics manufacturing. Supplied in bulk packaging.
Additional Information
Series: TerminylRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Wire Gauge | 8 AWG (8.00mm²) |
| Insulation | Non-Insulated |
| Pin Diameter | Circular - 0.102"" (2.60mm) Dia |
| Length - Overall | 1.445"" (36.70mm) |
| Termination | Crimp |
| Length - Pin | 0.709"" (18.01mm) |
| Insulation Diameter | 0.260"" (6.60mm) |
Request a Quote
Clients Also Buy

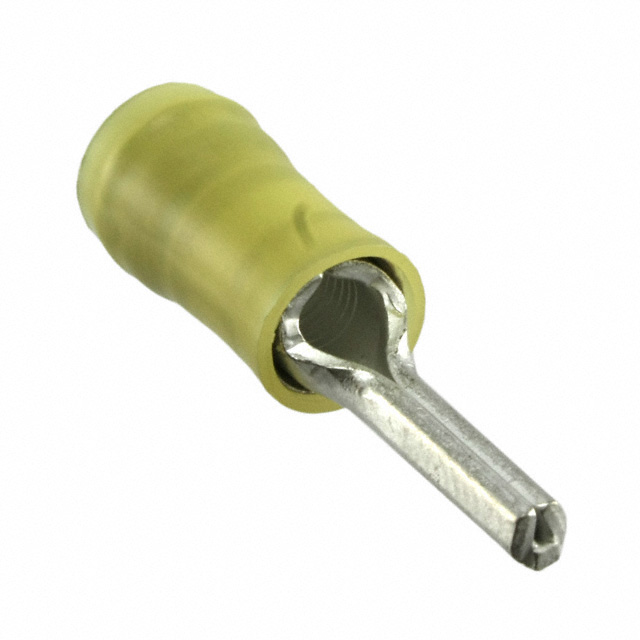

2-696200-2
