787780-1
CONN RCPT TYPEB 4POS R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

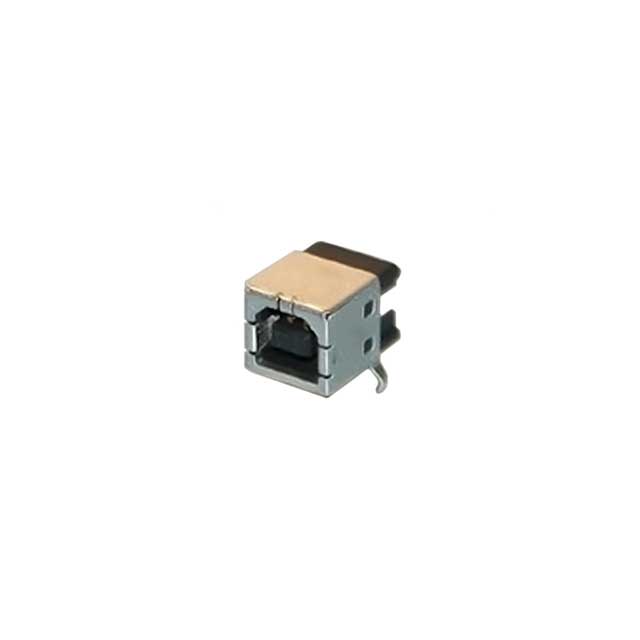

The TE Connectivity AMP Connectors USB-B Receptacle Connector, part number 787780-1, offers a robust solution for data connectivity. This shielded, 4-position USB Type-B receptacle features a right-angle, through-hole mounting style for horizontal board placement. Designed for 1500 mating cycles, it supports a current rating of 1A per contact and a voltage rating of 30VAC. Key features include board locks for enhanced mechanical stability and a solder termination for reliable connections. This component is suitable for applications in consumer electronics, industrial automation, and telecommunications. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Voltage - Rated | 30VAC |
| Number of Contacts | 4 |
| Connector Type | USB-B (USB TYPE-B) |
| Gender | Receptacle |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 1 |
