787617-1
CONN RCPT TYPEA STACKED 8POS R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

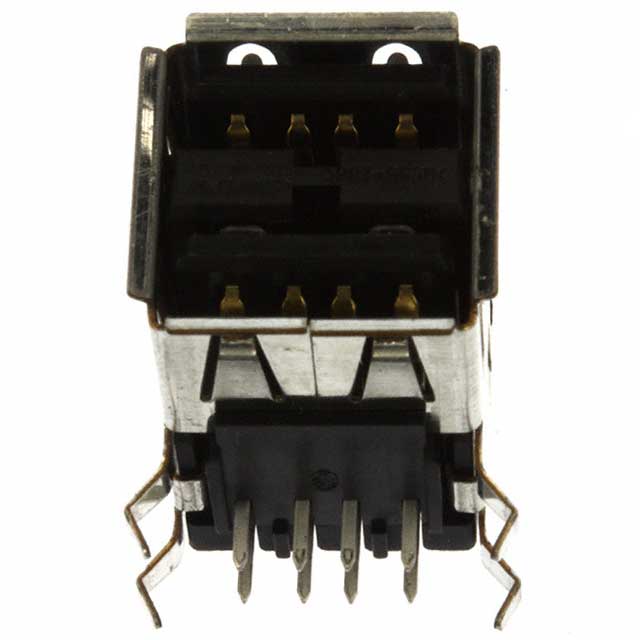

TE Connectivity AMP Connectors offers the 787617-1, a shielded USB-A stacked receptacle connector. This component features two stacked ports, each with 8 positions, designed for through-hole, right-angle mounting. The connector supports a current rating of 1A per contact and a voltage rating of 30VAC. With a mating cycle rating of 1500, it incorporates a board lock feature for enhanced mechanical stability. The operating temperature range is -55°C to 85°C. This component is commonly utilized in applications within the consumer electronics, industrial automation, and networking equipment sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Voltage - Rated | 30VAC |
| Number of Contacts | 8 |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Gender | Receptacle |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 2 |
