787616-1
CONN RCPT TYPEA 4POS R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

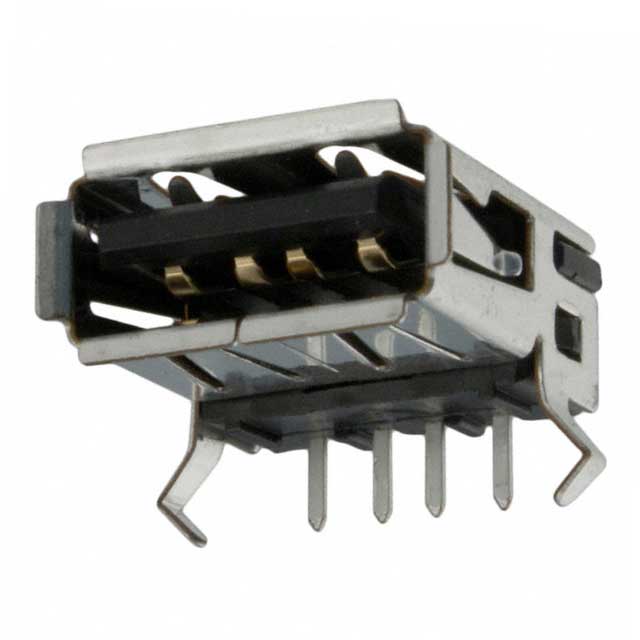

TE Connectivity AMP Connectors USB-A (USB TYPE-A) Receptacle Connector, Part Number 787616-1. This 4-position through-hole, right-angle connector is designed for shielded applications. It features a board lock for enhanced mounting stability and a current rating of 1A per contact. With a mating cycle of 1500 and a voltage rating of 30VAC, this connector is suitable for demanding applications in the automotive, industrial, and consumer electronics sectors. The termination type is solder.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Voltage - Rated | 30VAC |
| Number of Contacts | 4 |
| Connector Type | USB-A (USB TYPE-A) |
| Gender | Receptacle |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 1 |
