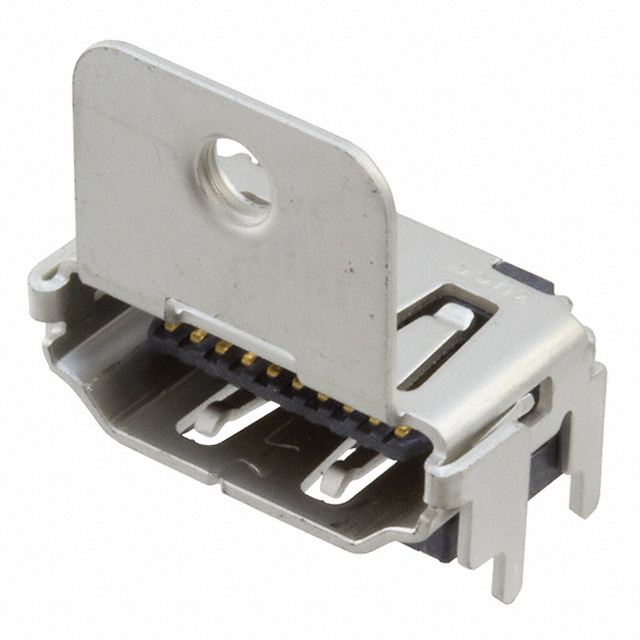

5-1903015-4
CONN RCPT HDMI 19POS PNL MNT R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors' 5-1903015-4 is a high-density HDMI receptacle connector designed for robust panel mounting applications. This 19-position component features a right-angle, through-hole mounting style with a horizontal flange for secure panel integration. Rated for 0.5A and 40VAC, it supports up to 10,000 mating cycles and operates within a temperature range of -25°C to 70°C. The unshielded design and solder termination ensure reliable signal integrity for demanding applications. This connector is commonly utilized in the consumer electronics, broadcast, and professional audio/video industries where high-bandwidth digital signal transmission is critical. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 70°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
