2069486-2
CONN RCPT HDMI 19POS SMD R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

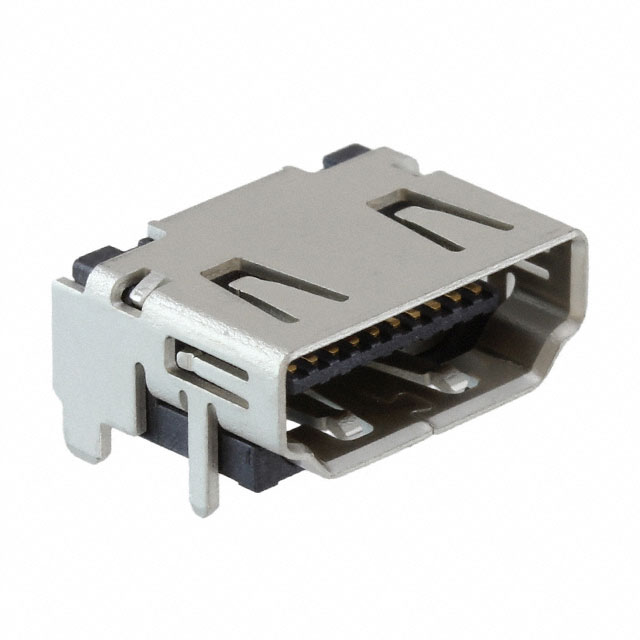

TE Connectivity AMP Connectors HDMI Receptacle Connector, 19 Position, Right Angle Through Hole, Surface Mount. This component, part number 2069486-2, is designed for high-speed digital data transmission. It features a 19-contact configuration with a solder termination for robust connections. The receptacle is rated for 0.5A current and 40VAC voltage, with a mating cycle endurance of 10,000 cycles. Operating within a temperature range of -30°C to 85°C, this connector is suitable for applications in consumer electronics, automotive infotainment systems, and industrial displays. Supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | - |
| Operating Temperature | -30°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | - |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
