2069486-1
CONN RCPT HDMI 19POS SMD R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

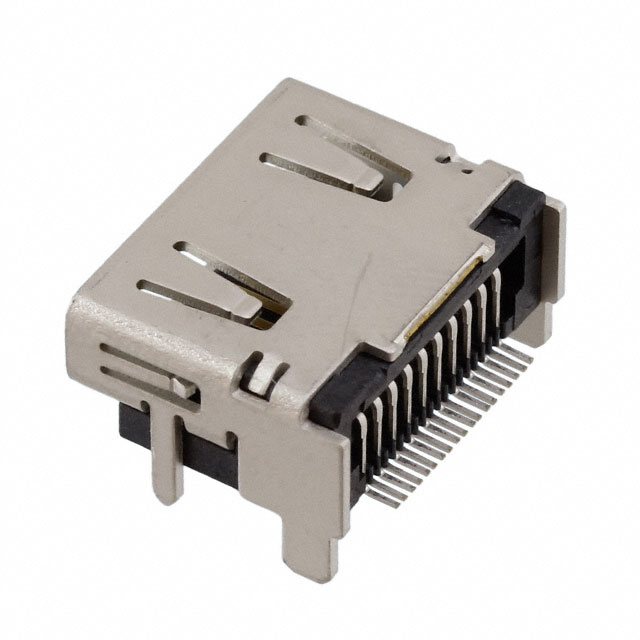

TE Connectivity AMP Connectors HDMI Receptacle Connector, 19 Position, Surface Mount Right Angle with Through Hole termination. This component, part number 2069486-1, is designed for high-definition multimedia interface applications. It features a 0.5A current rating and a 40VAC voltage rating, with a mating cycle of 10,000. The operating temperature range is -30°C to 85°C. This connector is supplied on tape and reel for automated assembly. It is commonly utilized in consumer electronics, professional audio/video, and automotive display systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | - |
| Operating Temperature | -30°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | - |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
