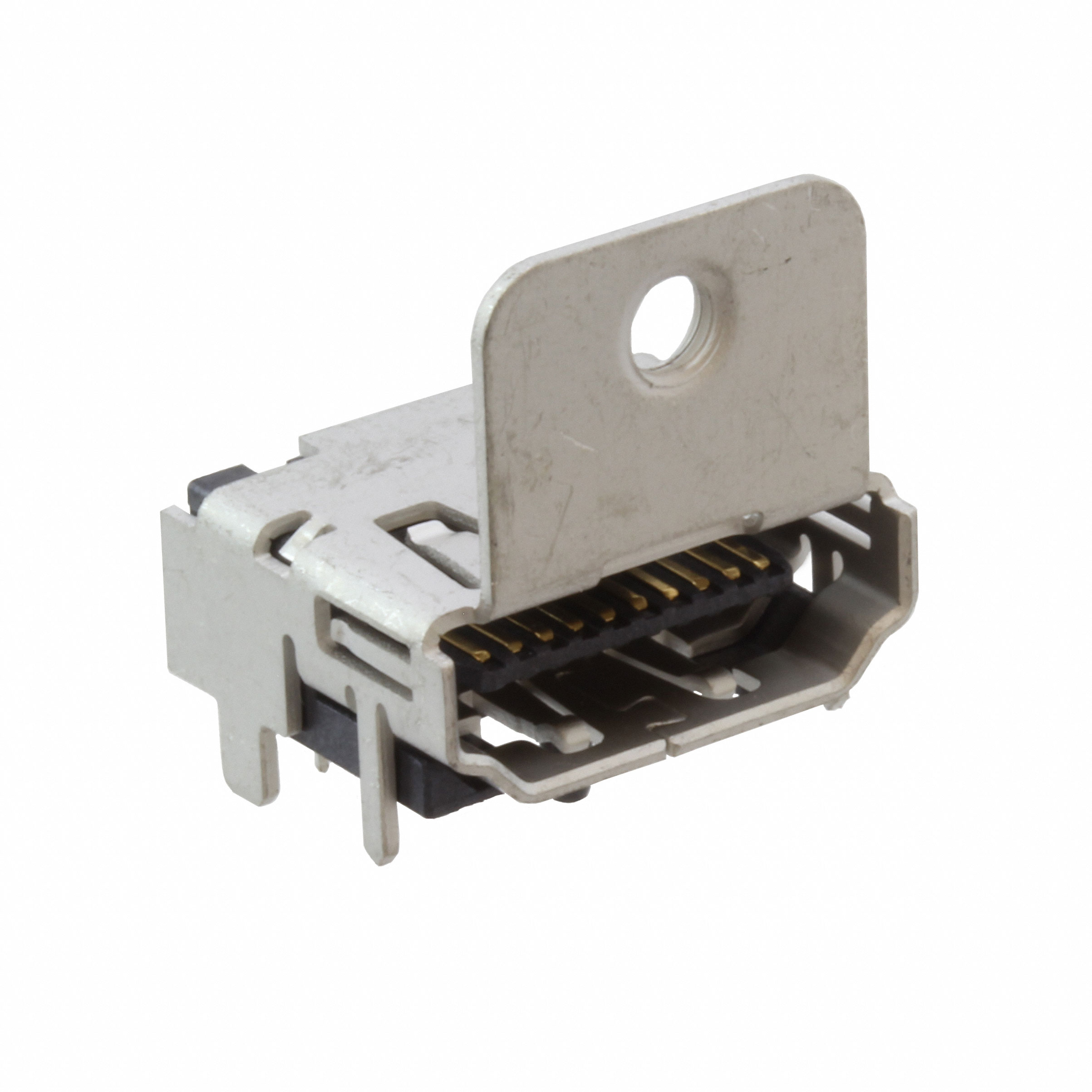

2069485-1
CONN RCPT HDMI 19POS PCB R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors HDMI Receptacle Connector, Part Number 2069485-1, offers a 19-position, right-angle, through-hole solution for robust panel mounting applications. This connector is designed for high-density interconnects, supporting a current rating of 0.5A and a voltage rating of 40VAC. With a mating cycle endurance of 10,000 cycles, it ensures long-term reliability in demanding environments. The horizontal mounting feature with a flange facilitates secure integration into various chassis designs. This component is widely utilized in consumer electronics, broadcast equipment, and industrial automation systems where high-definition digital signal transmission is critical. Supplied in tray packaging for efficient inventory management.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | -30°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
