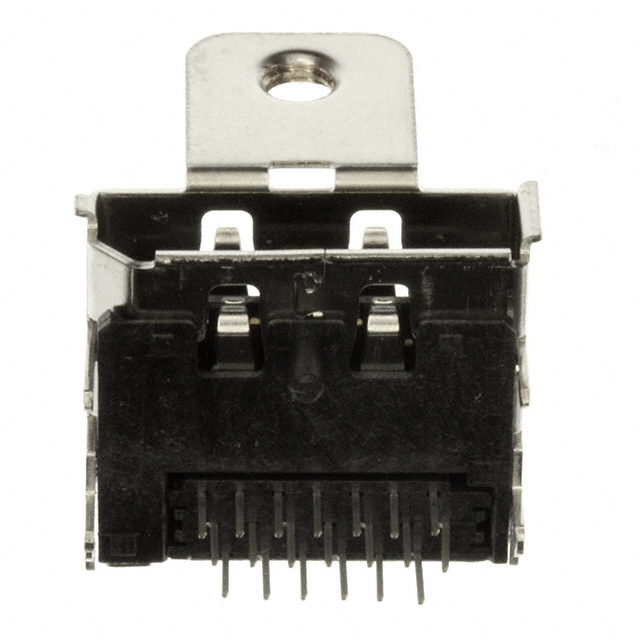

2040210-1
CONN RCP 1.1A DISPLAYPORT 20P RAManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 2040210-1, a DisplayPort receptacle connector designed for high-density signal integrity. This 20-position, through-hole, right-angle connector supports DisplayPort 1.1a specifications, facilitating robust data transmission. Each contact is rated for 0.5A and can withstand 10,000 mating cycles. The connector features a board guide for precise PCB placement and terminates via solder. Its operating temperature range is -40°C to 85°C. This component is commonly found in display interfaces for consumer electronics, professional audio-visual equipment, and industrial computing systems. The part is supplied in a tray package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Voltage - Rated | 40VAC |
| Number of Contacts | 20 |
| Connector Type | DisplayPort |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | -40°C ~ 85°C |
| Specifications | Display Port 1.1a |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
