2040204-1
CONN RCP 1.1A DISPLAYPORT SMD RAManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

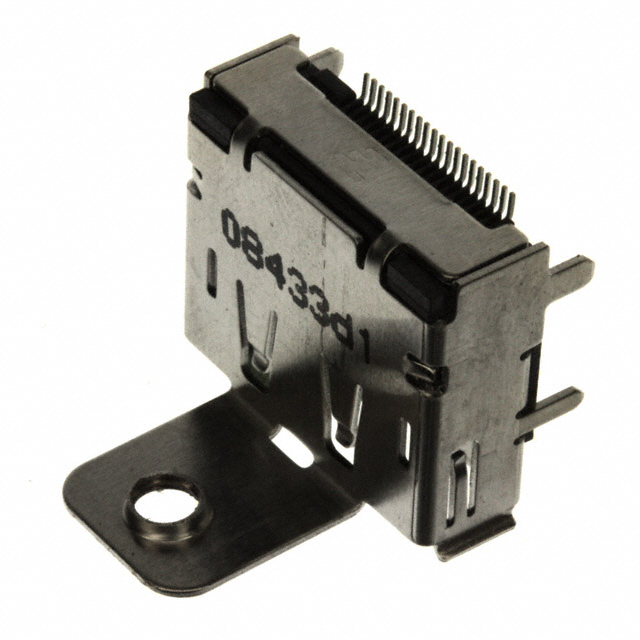

TE Connectivity AMP Connectors' 2040204-1 is a 20-position DisplayPort 1.1a receptacle connector. This surface mount, right-angle component with through-hole mounting features a flange for horizontal mounting. Designed for 0.5A current per contact and rated for 40VAC, it offers 10,000 mating cycles and a solder termination. The operating temperature range is -40°C to 85°C. This component is suitable for applications in the consumer electronics and computer peripheral industries. It is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Voltage - Rated | 40VAC |
| Number of Contacts | 20 |
| Connector Type | DisplayPort |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | - |
| Operating Temperature | -40°C ~ 85°C |
| Specifications | Display Port 1.1a |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
