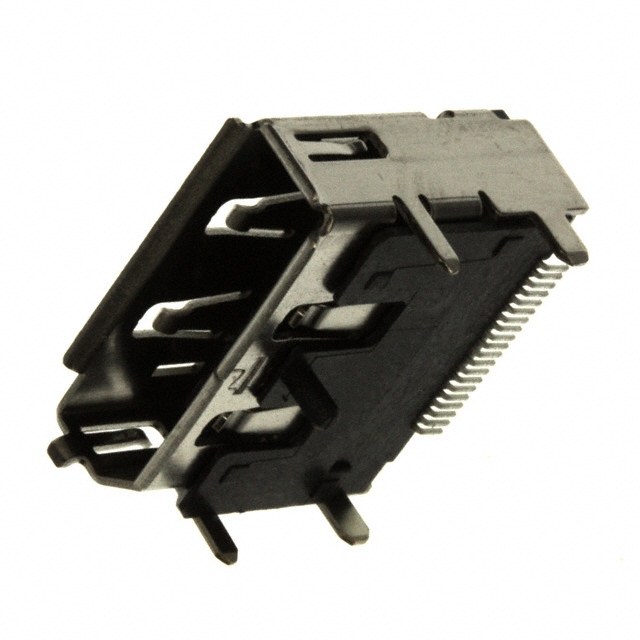

2013655-1
CONN RCP 1.1A DISPLAYPORT SMD RAManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors DisplayPort Receptacle, Part Number 2013655-1, offers a 20-position, surface mount, right-angle solution for DisplayPort 1.1a interfaces. This component features a horizontal mounting orientation and solder termination. Designed for demanding applications, it supports a current rating of 0.5A per contact and a voltage rating of 40VAC. With a mating cycle of 10,000, it is suitable for use in the consumer electronics and computing industries. The receptacle includes a board guide for enhanced assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Voltage - Rated | 40VAC |
| Number of Contacts | 20 |
| Connector Type | DisplayPort |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | - |
| Operating Temperature | -40°C ~ 85°C |
| Specifications | Display Port 1.1a |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
