1932522-1
CONN RCPT USB2.0 TYPEA STACK R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

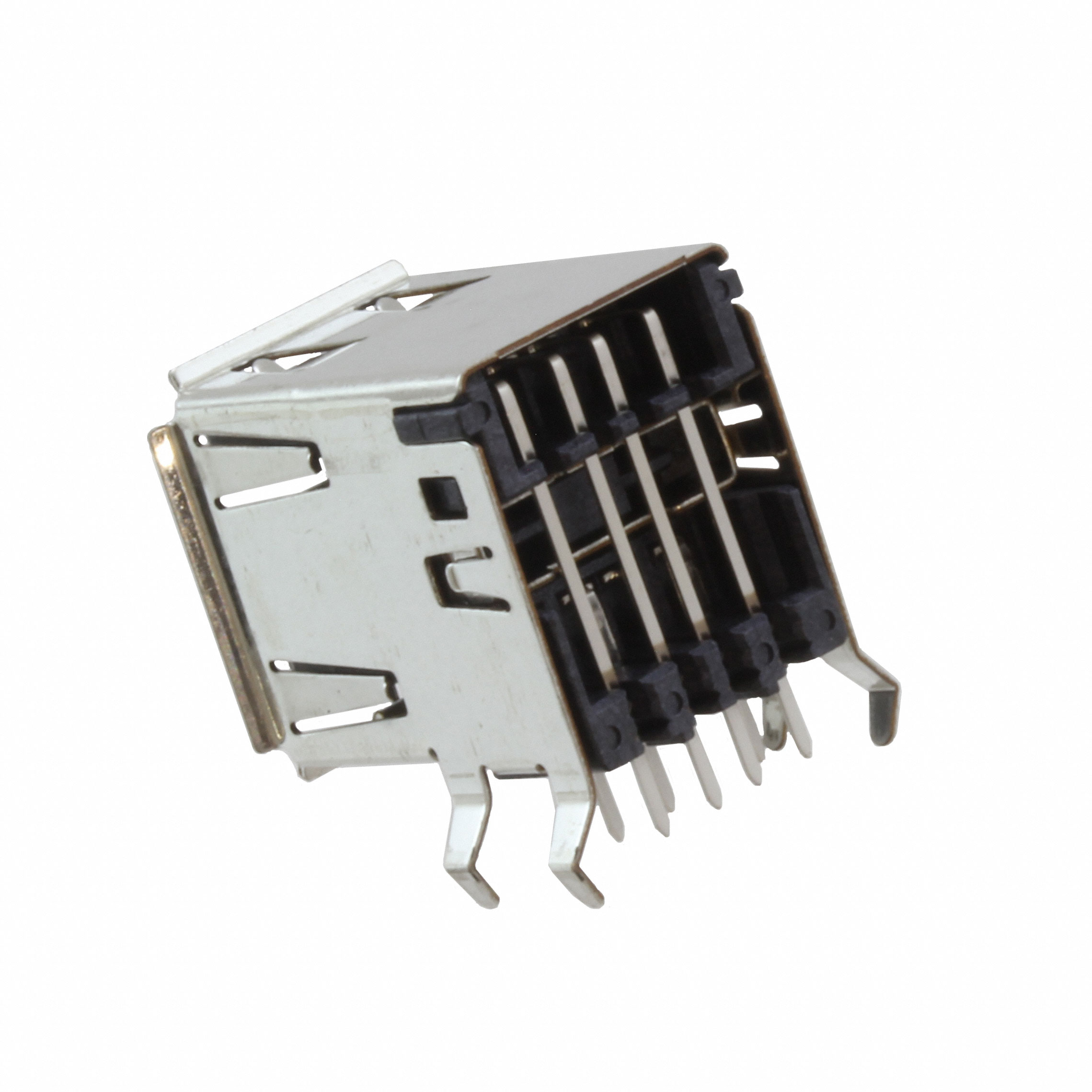

TE Connectivity AMP Connectors, USB-A (USB TYPE-A), Stacked USB 2.0 Receptacle Connector, 8 Position, Through Hole, Right Angle, Part Number 1932522-1. This connector assembly supports USB 2.0 specifications and features a stacked configuration with two ports. It offers a current rating of 1A per contact and a voltage rating of 30VAC. Designed for 1500 mating cycles, it includes a board lock feature for enhanced mechanical stability. Termination is via solder, and the mounting type is through hole, right angle for horizontal board placement. Operating temperature range is -55°C to 85°C. This component is commonly utilized in consumer electronics, computing, and industrial automation applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Voltage - Rated | 30VAC |
| Number of Contacts | 8 |
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Gender | Receptacle |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | -55°C ~ 85°C |
| Specifications | USB 2.0 |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 2 |
