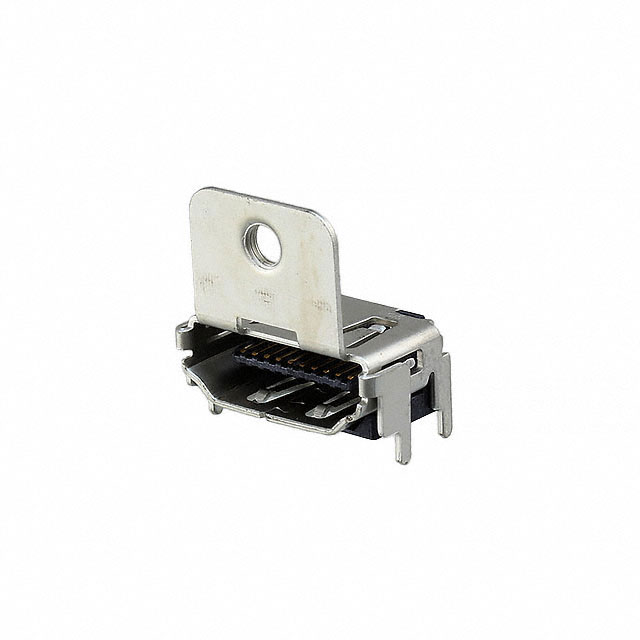

1903015-3
CONN RCPT HDMI 19POS PNL MNT R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors HDMI Receptacle Connector, Part Number 1903015-3, offers robust connectivity for high-definition multimedia interfaces. This 19-position panel mount receptacle features a right-angle, surface-mount design with through-hole mounting for secure installation. Rated for 0.5A and 40VAC, it supports up to 10,000 mating cycles. The connector is supplied on tape and reel for efficient automated assembly processes. Its durable construction is suitable for applications in consumer electronics, home theater systems, and professional audio-visual equipment. The unshielded design prioritizes signal integrity for standard HDMI transmissions. Operating temperature range is -25°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 70°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
