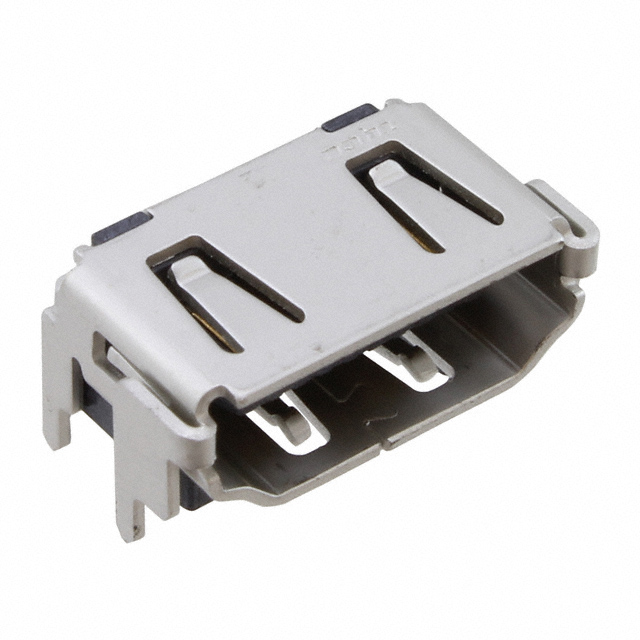

1903015-1
CONN RCPT HDMI 19POS PNL MNT R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors HDMI Receptacle Connector, part number 1903015-1, offers a 19-position solution for robust signal integrity. This right-angle, panel-mount connector features a surface-mount, through-hole termination style for versatile PCB integration. Designed for a current rating of 0.5A and a voltage rating of 40VAC, it supports up to 10,000 mating cycles. The unshielded configuration and operating temperature range of -25°C to 70°C make it suitable for applications in consumer electronics, home entertainment systems, and professional audio-visual equipment. Packaged on tape and reel, this connector facilitates efficient automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 70°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
