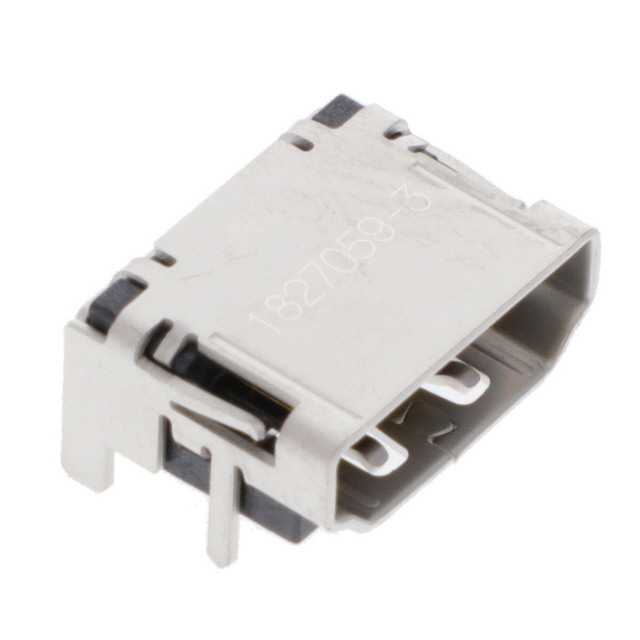

1827059-3
CONN RCPT HDMI 19POS PNL MNT R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors HDMI Receptacle Connector, part number 1827059-3, offers a 19-position solution for robust signal integrity. This panel-mount connector features a right-angle, surface-mount termination with through-hole support, ensuring secure board attachment. Designed for high-cycle applications, it boasts a mating cycle rating of 10,000 cycles and a current rating of 0.5A at 40VAC. Integrated board guides facilitate precise alignment during assembly. The connector operates within a temperature range of -25°C to 70°C. This component is commonly utilized in consumer electronics, audio-visual equipment, and computing applications where reliable HDMI connectivity is critical. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Panel Mount; Surface Mount, Right Angle; Through Hole |
| Shielding | Unshielded |
| Operating Temperature | -25°C ~ 70°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
