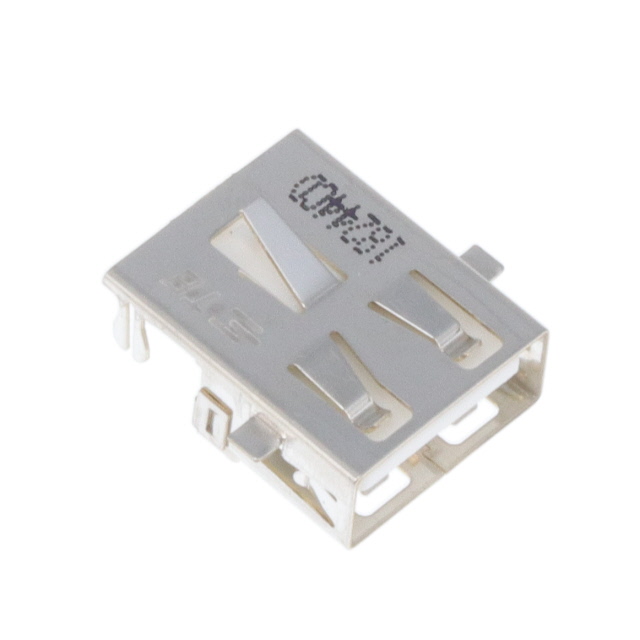

1746311-2
CONN RCP USB2.0 TYPEA 4POS TH RAManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors USB-A (USB Type-A) connector, part number 1746311-2, is a 4-position, right-angle, through-hole receptacle designed for board edge mounting with cutout. This USB 2.0 component features a board lock for enhanced mechanical stability and a solder termination. It is rated for 1A per contact and 30VAC, with a mating cycle of 1500. The operating temperature range is -40°C to 80°C. This connector is commonly utilized in consumer electronics, computing, and automotive applications. It is supplied in trays.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Voltage - Rated | 30VAC |
| Number of Contacts | 4 |
| Connector Type | USB-A (USB TYPE-A) |
| Gender | Receptacle |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Board Edge, Cutout; Through Hole, Right Angle |
| Shielding | - |
| Operating Temperature | -40°C ~ 80°C |
| Specifications | USB 2.0 |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Horizontal |
| Mating Cycles | 1500 |
| Number of Ports | 1 |
