1734346-1

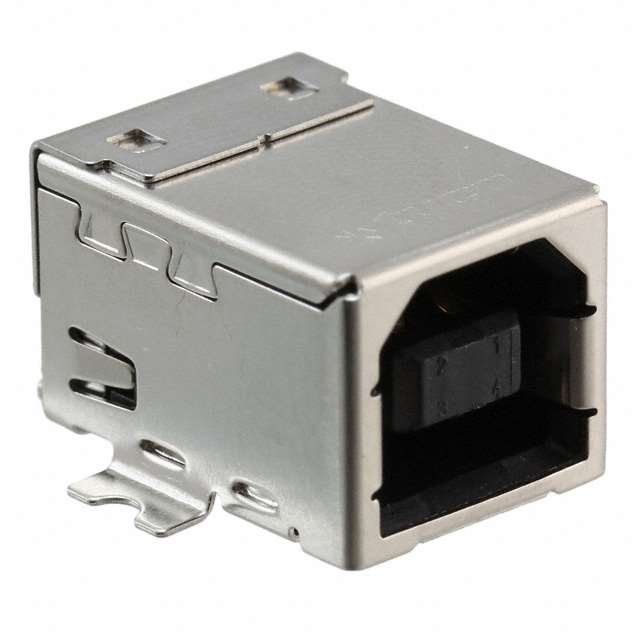

CONN RCPT USB2.0 TYPEB 4P SMD RA

Manufacturer: TE Connectivity AMP Connectors

Categories: USB, DVI, HDMI Connector Assemblies

Quality Control: Learn More

TE Connectivity AMP Connectors USB-B (USB TYPE-B) Receptacle, part number 1734346-1, offers a 4-position, surface mount, right-angle configuration supporting USB 2.0 specifications. This connector features a 1A current rating and 30VAC voltage rating, ideal for applications requiring robust USB connectivity. Key features include board guides and solder retention for secure assembly and reliable connections. Designed for 1500 mating cycles, it provides durability in demanding environments. The horizontal mounting type and single port design make it suitable for compact system integration. This component finds application in industrial automation, consumer electronics, and medical equipment. It is supplied in a tray package.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:
Technical Details:
FeaturesBoard Guide, Solder Retention
PackagingTray
Voltage - Rated30VAC
Number of Contacts4
Connector TypeUSB-B (USB TYPE-B)
GenderReceptacle
Current Rating (Amps)1A
Mounting TypeSurface Mount, Right Angle
Shielding-
Operating Temperature0°C ~ 50°C
SpecificationsUSB 2.0
TerminationSolder
Ingress Protection-
Mounting FeatureHorizontal
Mating Cycles1500
Number of Ports1
