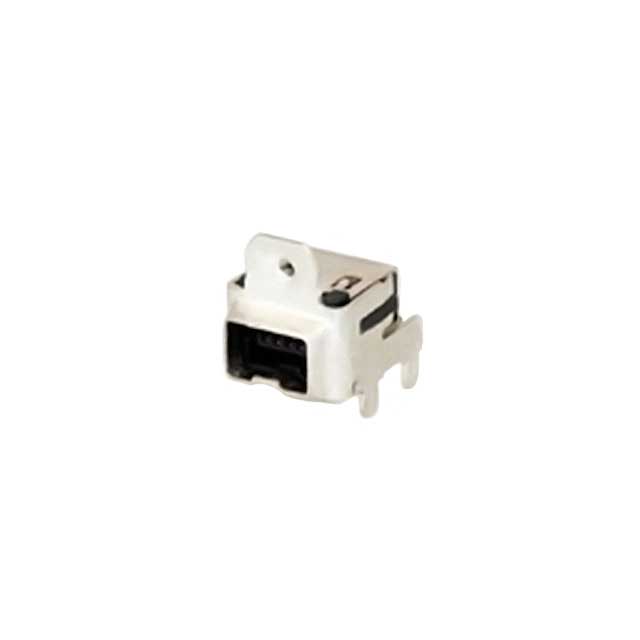

1123843-1
CONN RCPT IEEE 1394 FIREWIRE R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 1123843-1, a Firewire (IEEE 1394) receptacle connector. This component features a 4-position, through-hole, right-angle mounting configuration with a shielded design. It is rated for 0.5A per contact and operates at 5VDC. The connector includes a board guide and a flange for horizontal mounting. Designed for 1000 mating cycles and a solder termination, this receptacle is suitable for applications requiring reliable high-speed data transfer, commonly found in consumer electronics, industrial automation, and audio/video equipment. It is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Voltage - Rated | 5VDC |
| Number of Contacts | 4 |
| Connector Type | Firewire (IEEE 1394) |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Operating Temperature | -20°C ~ 70°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | Flange, Horizontal |
| Mating Cycles | 1000 |
| Number of Ports | 1 |
Request a Quote
