1-2069486-3
CONN RCPT HDMI 19POS SMD R/AManufacturer: TE Connectivity AMP Connectors
Categories: USB, DVI, HDMI Connector Assemblies
Quality Control: Learn More

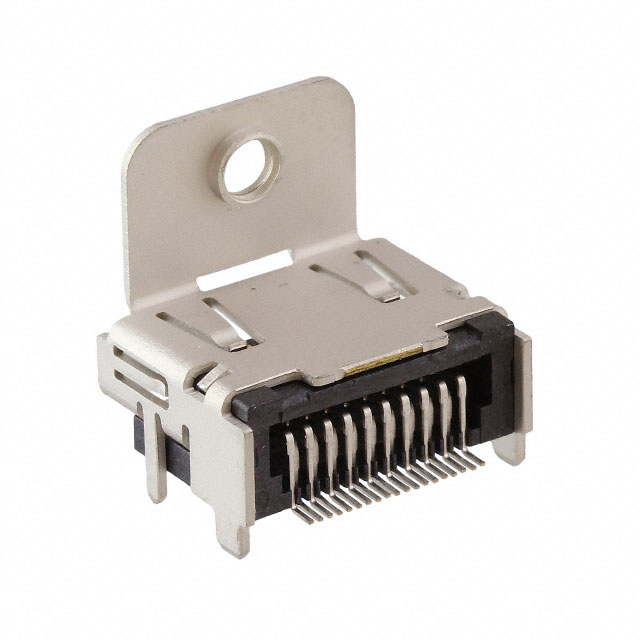

TE Connectivity AMP Connectors 1-2069486-3 is a 19-position HDMI receptacle connector designed for surface mount and right-angle through-hole applications. This component offers a current rating of 0.5A and a voltage rating of 40VAC, with a robust mating cycle capability of 10,000. The connector is supplied on tape and reel for efficient automated assembly. Its design is suitable for high-speed digital audio and video data transmission, finding application in consumer electronics, computing, and automotive systems. The termination method is solder, ensuring reliable connections.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 40VAC |
| Number of Contacts | 19 |
| Connector Type | HDMI |
| Gender | Receptacle |
| Current Rating (Amps) | 0.5A |
| Mounting Type | Surface Mount, Right Angle; Through Hole |
| Shielding | - |
| Operating Temperature | -30°C ~ 85°C |
| Specifications | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Feature | - |
| Mating Cycles | 10000 |
| Number of Ports | 1 |
