1-2320404-6
8-PORT 500M/1GBPS POE SWITCH, 2XManufacturer: TE Connectivity AMP Connectors
Categories: Switches, Hubs
Quality Control: Learn More

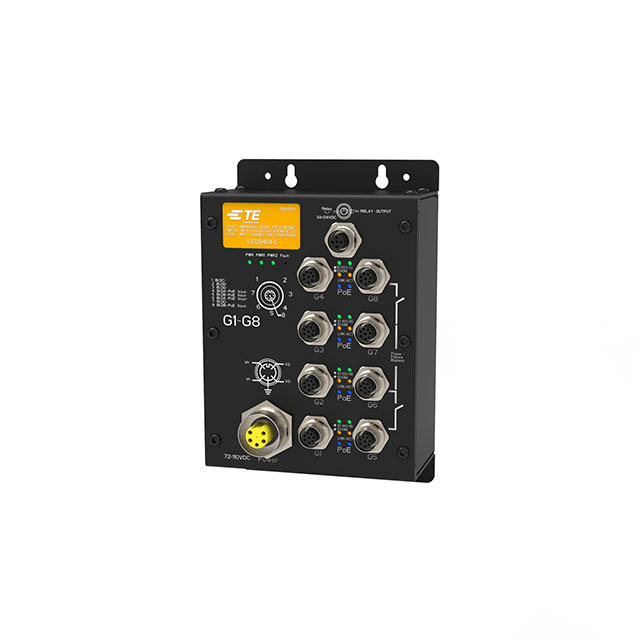

TE Connectivity AMP Connectors 1-2320404-6 is an unmanaged network switch featuring eight 10/100/1000 Mbps copper ports. This chassis-mount device supports Power over Ethernet (PoE) on all eight ports, delivering up to 500M/1GBPS. The switch is designed for robust operation with an IP30 ingress protection rating and an extended operating temperature range of -40°C to 75°C. Input voltage is configurable between 72 and 110VDC. This component is suitable for industrial networking applications, including factory automation, transportation, and energy infrastructure. The unit is supplied in tray packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Connector Type | M12 |
| Mounting Type | Chassis Mount |
| Voltage - Input | 72 ~ 110VDC |
| Type | Switch - Unmanaged |
| Configuration | Fixed |
| Operating Temperature | -40°C ~ 75°C |
| Number of Ports | 8 |
| Ingress Protection | IP30 |
| Fiber Type | - |
| Copper Ports | 8 |
| Copper Type | 10/100/1000 |
| Fiber Ports | - |
| SFP/XFP Type | - |
| PoE Ports | 8 |
| SFP/XFP Ports | - |
