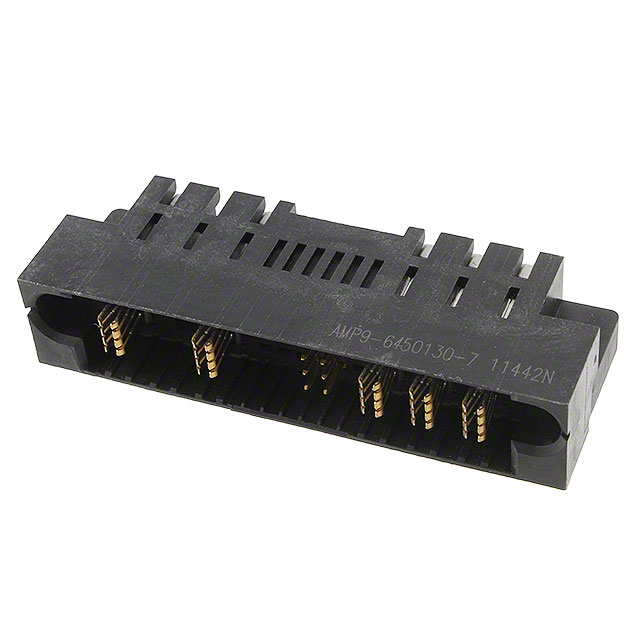

CONN HEADER MULTI-BEAM 30POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
TE Connectivity AMP Connectors MULTI-BEAM XL series connector header, part number 9-6450130-7, is a 30-position through-hole, right-angle component featuring male pins and blades. This header facilitates PCB mounting with a 0.100" (2.54mm) pitch. It offers a robust connection with a gold contact finish, 30µin (0.76µm) thick, and is designed for applications requiring both signal and power delivery, with a typical layout of 24 signal and 6 power positions. Key features include a board lock for enhanced retention and a mating guide for simplified assembly. The component is supplied in bulk packaging. This connector is utilized in demanding industries such as telecommunications, data storage, and industrial automation where high-density, high-power interconnects are critical.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 30 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | 13 |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 24 Signal, 6 Power |
| Number of Columns | - |
Request a Quote
Clients Also Buy
1-1600636-0
CONN RCPT HSG MULTI-BEAM 20P BLK
1-1600636-3
CONN RCPT HSG MULTI-BEAM 18P BLK
1-1600636-4
CONN RCPT HSG MULTI-BEAM 30P BLK
