8-6450130-5
MBXL R/A HDR 1P+16S+1PManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More
18 Connector Header, Male Pins and Blades Through Hole, Right Angle Black Multi-Beam
Additional Information
Series: MULTI-BEAM XLRoHS Status: Request inventory verificationManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 18 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Contact Layout, Typical | 16 Signal, 2 Power |
| Number of Columns | - |
Request a Quote
Clients Also Buy

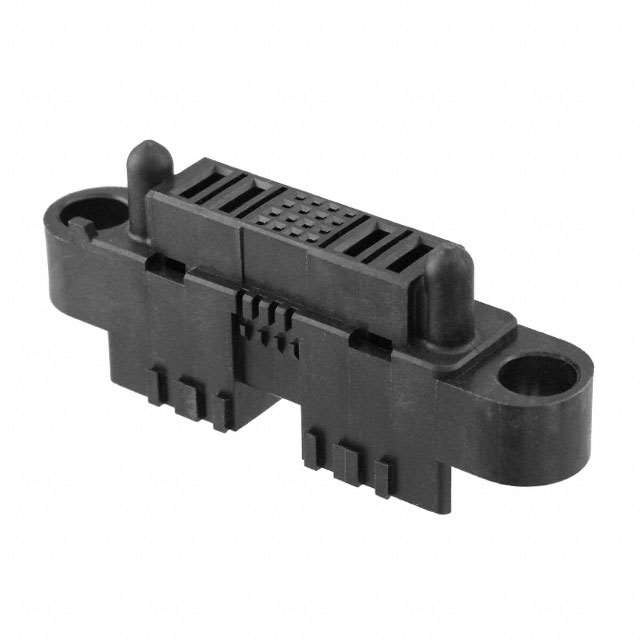

1-1600636-0
