796590-4
CONN HEADER DRAWER 25POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

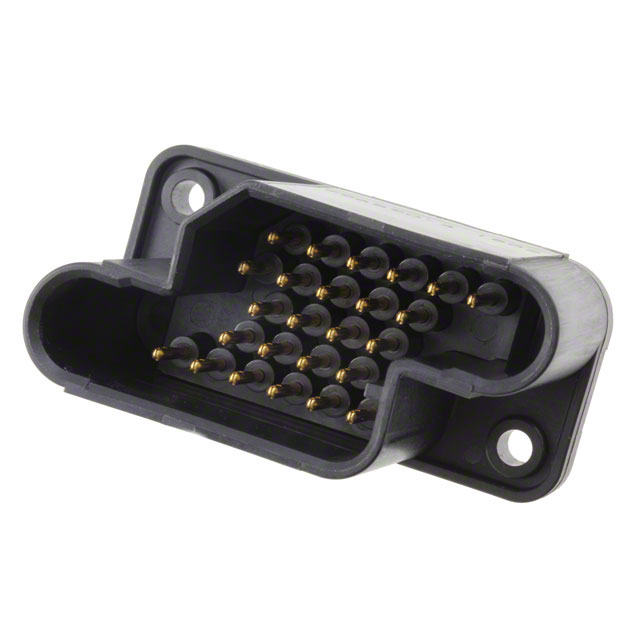

TE Connectivity AMP Connectors Metrimate series header, part number 796590-4, is a 25-position drawer connector designed for PCB mounting. This male pin header features a through-hole termination with gold-plated contacts offering a 30.0µin (0.76µm) finish. The black housing incorporates a mating guide for enhanced alignment and ease of assembly. With a pitch of 0.200" (5.08mm) and five rows, this component is suitable for high-density applications. The press-fit termination ensures a secure and reliable connection without soldering. This connector is widely utilized in industrial automation, telecommunications, and medical equipment sectors.
Additional Information
Series: MetrimateRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Guide |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Pitch | 0.200"" (5.08mm) |
| Number of Rows | 5 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Drawer |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Number of Columns | - |
