6766650-1
CONN,SKT,MINI DRAWERManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

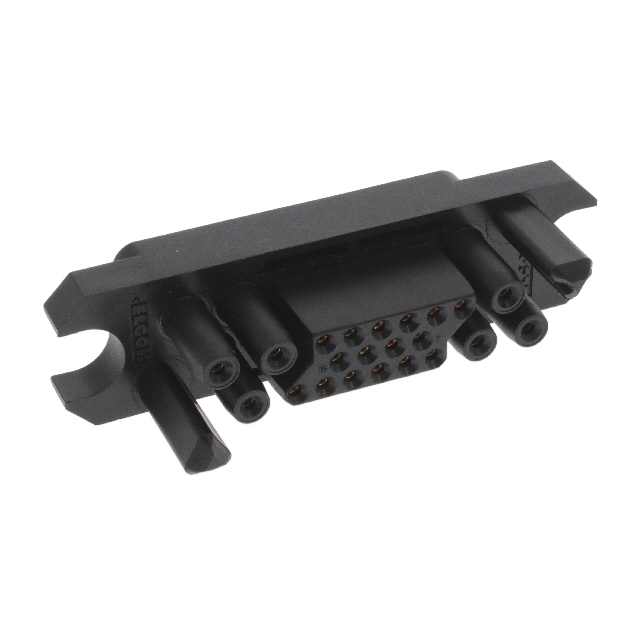

TE Connectivity AMP Connectors' ELCON Series offers the 6766650-1, a 22-position receptacle with female sockets designed for through-hole mounting. This Mini-Drawer style connector features a black housing and a 3-row configuration, supporting 16 signal and 6 power contacts. The 6766650-1 utilizes press-fit termination for robust assembly. Its guide pin feature aids in proper alignment during mating. This component is utilized in various industrial applications, including telecommunications and data processing equipment.
Additional Information
Series: ELCONRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 22 |
| Pitch | - |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Mini-Drawer |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 16 Signal, 6 Power |
| Number of Columns | - |
