6766649-1
CONN,PIN,MINI DRAWERManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

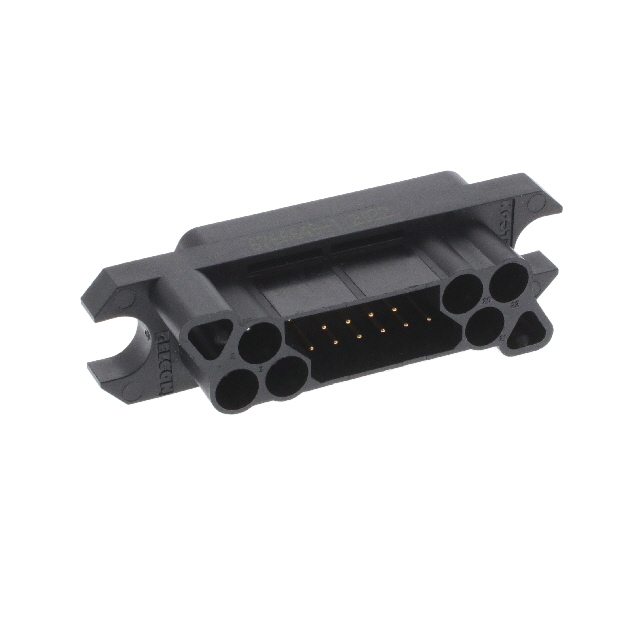

TE Connectivity AMP Connectors MULTI-BEAM XL Series connector, part number 6766649-1, is a 22-position, 3-row header featuring male pins with a black Mini-Drawer connector style. This through-hole mounting component is designed for press-fit termination. It offers a typical contact layout of 16 signal and 6 power contacts, with all positions loaded. This durable connector is suitable for applications in high-density board-to-board interconnects within the telecommunications, data networking, and industrial automation sectors. The component is supplied in bulk packaging.
Additional Information
Series: MULTI-BEAM XLRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 22 |
| Pitch | - |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Termination | Press-Fit |
| Connector Usage | - |
| Connector Style | Mini-Drawer |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 16 Signal, 6 Power |
| Number of Columns | - |
