6766385-1
CONN RCPT DRAWER 29POS PNL MNTManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

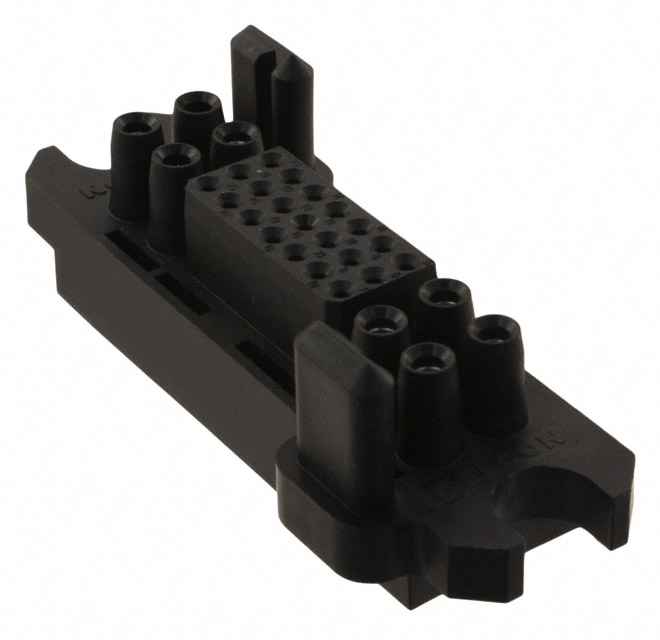

TE Connectivity AMP Connectors ELCON Series 6766385-1 is a 29-position receptacle connector designed for panel mounting. This black drawer-style connector features female sockets and a lower connector configuration, incorporating a guide pin for accurate mating. The 29 positions are fully loaded, supporting power applications. Termination is achieved via solder. This component is utilized in demanding sectors such as industrial automation, telecommunications infrastructure, and data storage systems.
Additional Information
Series: ELCONRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | - |
| Color | Black |
| Mounting Type | Panel Mount |
| Number of Positions | 29 |
| Pitch | - |
| Number of Rows | 3 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Drawer, Lower |
| Contact Finish Thickness | - |
| Contact Layout, Typical | 29 Power |
| Number of Columns | - |
