6600132-5
CONN HEADER MULTI-BEAM 42POS PCBManufacturer: TE Connectivity AMP Connectors
Categories: Specialized
Quality Control: Learn More

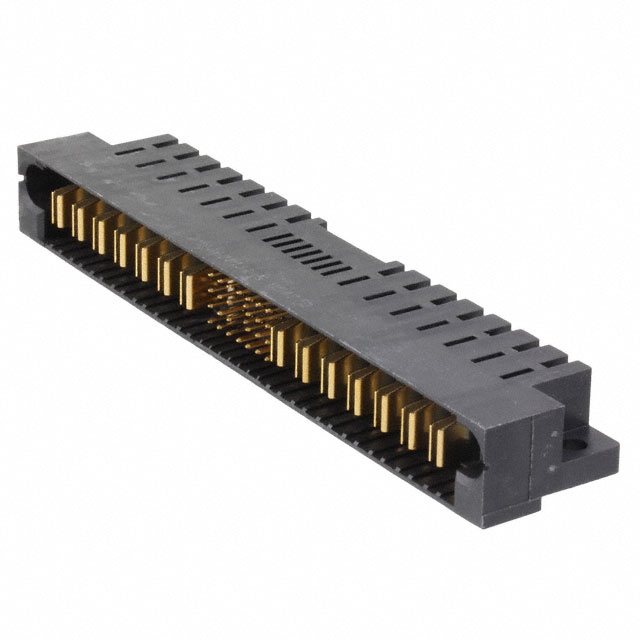

TE Connectivity AMP Connectors MULTI-BEAM XL Series header, part number 6600132-5, is a 42-position right-angle, through-hole connector designed for PCB mounting. This male header features gold-plated contacts with a thickness of 30.0µin (0.76µm) for enhanced conductivity and durability. The connector boasts a 0.100" (2.54mm) pitch and a 4-row configuration, providing a dense and efficient connection solution. It incorporates board lock and mating guide features for secure and reliable assembly. The contact layout includes 28 signal and 14 power positions, making it suitable for high-density power and signal applications. This black-colored header, packaged in a tray, is commonly utilized in telecommunications, data centers, and industrial automation equipment.
Additional Information
Series: MULTI-BEAM XLRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mating Guide |
| Packaging | Tray |
| Connector Type | Header, Male Pins and Blades |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 42 |
| Pitch | 0.100"" (2.54mm) |
| Number of Rows | 4 |
| Number of Positions Loaded | All |
| Termination | Solder |
| Connector Usage | - |
| Connector Style | Multi-Beam |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | 28 Signal, 14 Power |
| Number of Columns | - |
